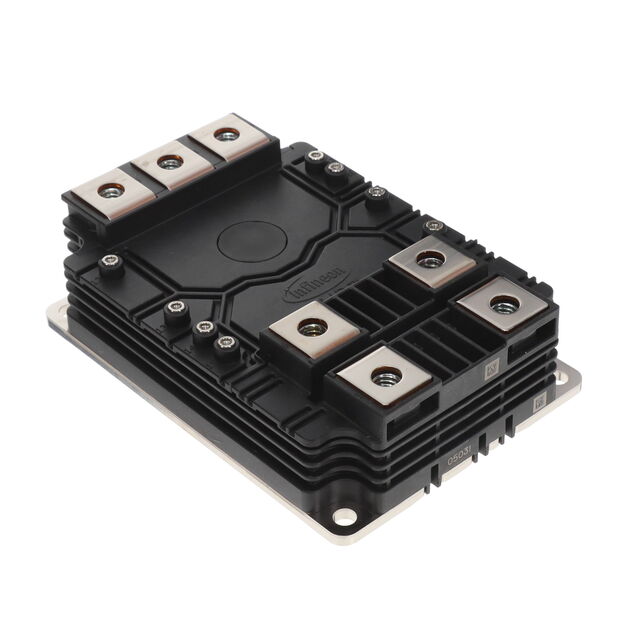

FF1800XTR17T2P5BPSA1
XHP™ 21700 V, 1800 A dual IGBT module with.XT interconnection technologyand TRENCHSTOP™ IGBT5 for high reliability and robustness, combined with system availability and long lifetime for high power traction and wind applications. Also available with preapplied Thermal Interface Material (TIM).
Technical Specifications
Parameters and characteristics for this part
| Specification | FF1800XTR17T2P5BPSA1 |
|---|---|
| Configuration | Half Bridge Inverter |
| Current - Collector (Ic) (Max) | 1800 A |
| Current - Collector Cutoff (Max) | 10 mA |
| Ic (Typ) | 1800 A |
| IGBT Type | Trench Field Stop |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 84000 pF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Package Name | Module |
| Power - Max | 1800000 W |
| Vce(on) (Max) | 2.25 V |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
