HPS9232502FKB19
ActiveVishay Dale
HPS 923 25K 1% 100PPM BO30 E1 /BOX
HPS9232502FKB19
ActiveVishay Dale
HPS 923 25K 1% 100PPM BO30 E1 /BOX
Description
General part information
HPS9232502FKB19

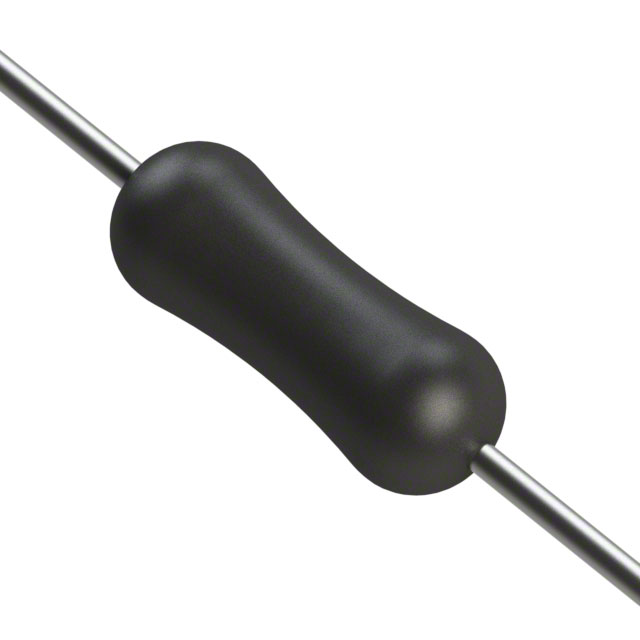

25 kOhms ±1% 6W Through Hole Resistor Axial High Voltage Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HPS9232502FKB19 |
|---|---|
| Composition | Thick Film |
| Features | High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 6 W |
| Resistance | 25 kOhm |
| Size / Dimension Diameter | 0.354 in |
| Size / Dimension Length | 0.906 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
