1423176
ActivePhoenix Contact

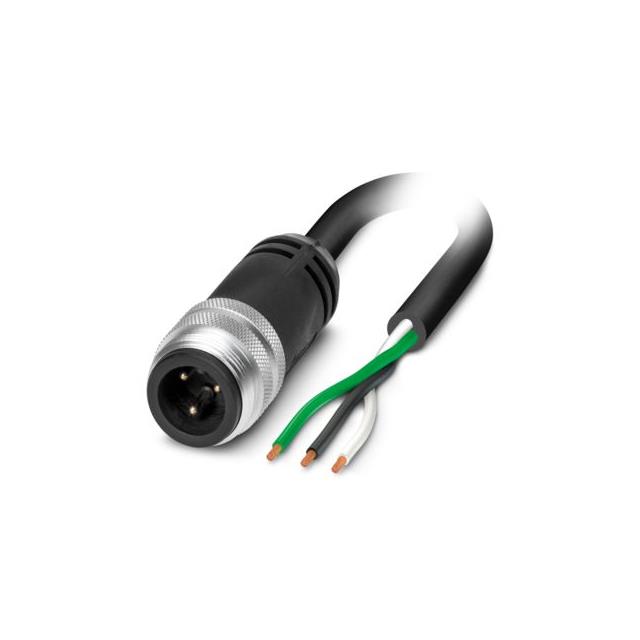

CIRC CBL 3POS RCPT TO WIRE 3.28'
1423176
ActivePhoenix Contact
CIRC CBL 3POS RCPT TO WIRE 3.28'
Description
General part information
1423176
Circular Cable Assembly Unshielded 3.28' (1.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1423176 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 3 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Shell Size - Insert (Size) | 1.375 in |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Thermoplastic Elastomer (TPE) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 3.28 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
