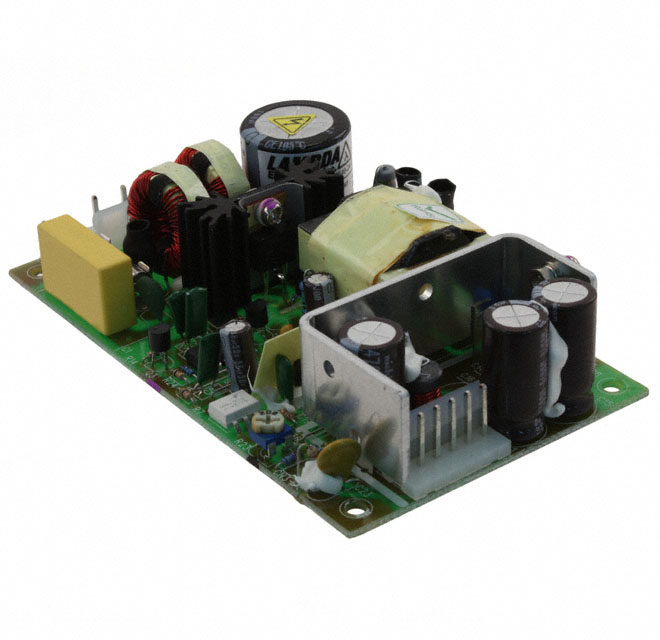

SCT48/R
ObsoleteTDK Corporation
AC/DC CONVERTER 5V 24V -5V 40W
SCT48/R
ObsoleteTDK Corporation
AC/DC CONVERTER 5V 24V -5V 40W
Description
General part information
SCT48/R
Open Frame AC DC Converters 3 Output 5V 24V -5V 85 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SCT48/R |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 4 A |
| Current - Output 2 | 1 A |
| Current - Output 3 | 500 mA |
| Efficiency | 70 % |
| Features | Universal Input, Adjustable Output |
| Minimum Load Required | Yes |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 55 W, 40 W |
| Size / Dimension Height | 1 in |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 3 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 24 V |
| Voltage - Output 3 | -5 V |
