PE3224-60
ActivePasternack

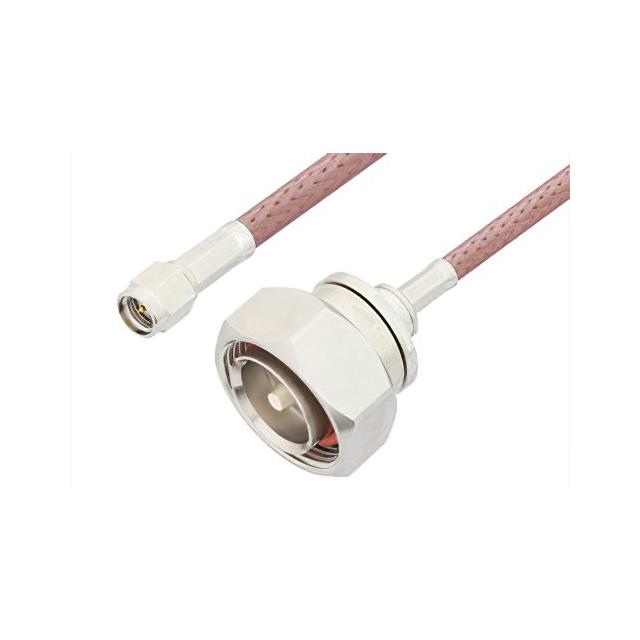

SMA MALE TO 7/16 DIN MALE CABLE
PE3224-60
ActivePasternack
SMA MALE TO 7/16 DIN MALE CABLE
Description
General part information
PE3224-60
Cable Assembly Coaxial 7/16 DIN to SMA RG-142 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3224-60 |
|---|---|
| 1st Connector | 7/16 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 142 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to SMA |
