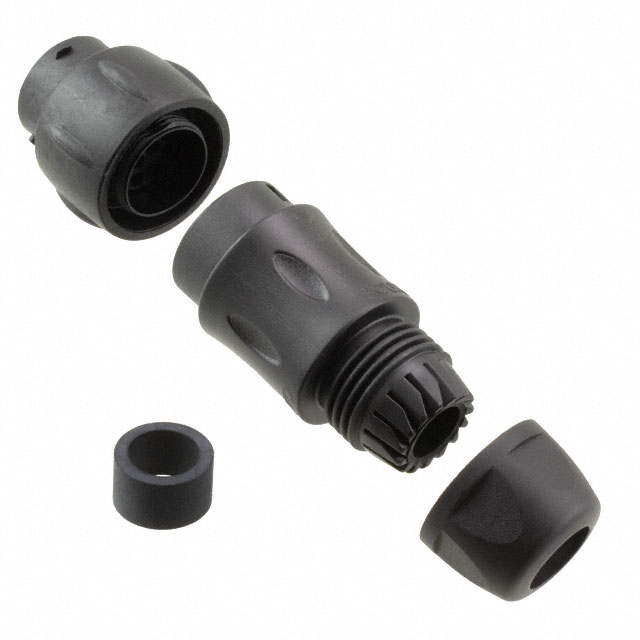

Specification	UTS1JC1412S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	12 mm
Shielding	Unshielded
Type	For Female Sockets

UTS1J Series

Part	Insert Material	Features	Shielding	Housing Color	Number of Positions	Contact Type	Shell Material	Type	Contact Size	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Note	Material Flammability Rating	Mounting Type	Contact Shape	Shell Size - Insert Width	Shell Size - Insert Length	Orientation	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Position Types	Shell Size - Insert	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
Amphenol Aerospace Operations UTS1JC104P	Nylon PA Polyamide	Backshell	Unshielded	Black	4	Crimp	Nylon Polyamide (PA)	For Male Pins	16 S	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	4 mm	10 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C
Amphenol Aerospace Operations UTS1JC103S	Nylon PA Polyamide	Backshell	Unshielded	Black	3	Crimp	Nylon Polyamide (PA)	For Female Sockets	16 S	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	3 mm	10 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C	PE
Amphenol Aerospace Operations UTS1JC103W3P	Nylon PA Polyamide	Backshell	Unshielded	Black	6	Crimp	Nylon Polyamide (PA)	For Male Pins	16 20	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular			N (Normal)	Receptacle Housing	-40 °C	105 °C		10-3W3
Amphenol Aerospace Operations UTS1JC147S	Nylon PA Polyamide	Backshell	Unshielded	Black	7	Crimp	Nylon Polyamide (PA)	For Female Sockets	16 S	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	7 mm	14 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C	PE
Amphenol Aerospace Operations UTS1JC148S	Nylon PA Polyamide	Backshell	Unshielded	Black	8	Crimp	Nylon Polyamide (PA)	For Female Sockets	12 16	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	8 mm	14 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C
Amphenol Aerospace Operations UTS1JC142G1P	Nylon PA Polyamide	Backshell	Unshielded	Black	3	Crimp	Nylon Polyamide (PA)	For Male Pins	8	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	2 mm	14 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C	PE Power
Amphenol Aerospace Operations UTS1JC1832S	Nylon PA Polyamide	Backshell	Unshielded	Black	32	Crimp	Nylon Polyamide (PA)	For Female Sockets	20	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular			N (Normal)	Receptacle Housing	-40 °C	105 °C			32	18
Amphenol Aerospace Operations UTS1JC124S	Nylon PA Polyamide	Backshell	Unshielded	Black	4	Crimp	Nylon Polyamide (PA)	For Female Sockets	16 S	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	4 mm	12 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C	PE
Amphenol Aerospace Operations UTS1JC103P	Nylon PA Polyamide	Backshell	Unshielded	Black	3	Crimp	Nylon Polyamide (PA)	For Male Pins	16 S	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	3 mm	10 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C	PE
Amphenol Aerospace Operations UTS1JC1210S	Nylon PA Polyamide	Backshell	Unshielded	Black	10	Crimp	Nylon Polyamide (PA)	For Female Sockets	20	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	10 mm	12 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C
