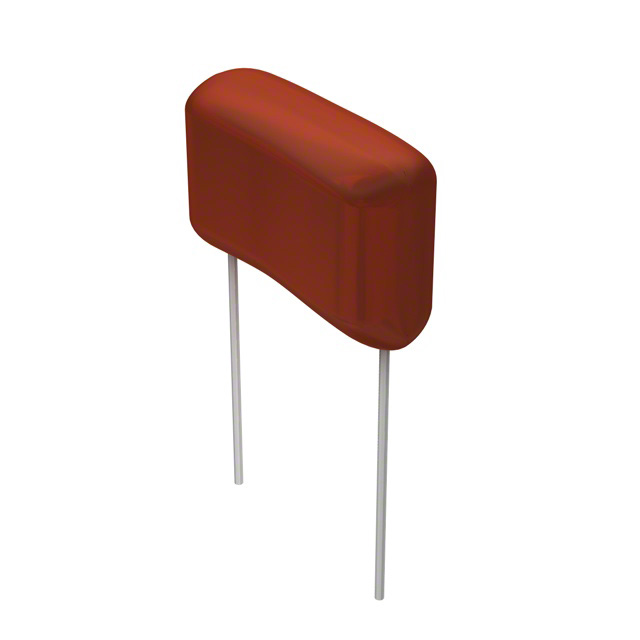

DPPM10S1K-F
ActiveCornell Dubilier Knowles
CAP FILM 10000PF 10% 1KVDC RAD
DPPM10S1K-F
ActiveCornell Dubilier Knowles
CAP FILM 10000PF 10% 1KVDC RAD
Description
General part information
DPPM10S1K-F
10000 pF Film Capacitor 450V 1000V (1kV) Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | DPPM10S1K-F |
|---|---|
| Applications | High Pulse, Snubber, Switching, High Frequency, DV/DT |
| Capacitance | 10000 pF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.709 in |
| Lead Spacing | 0.827 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.984 in |
| Size / Dimension Width | 0.374 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 450 V |
| Voltage Rating - DC | 1 kV |
