Description
General part information

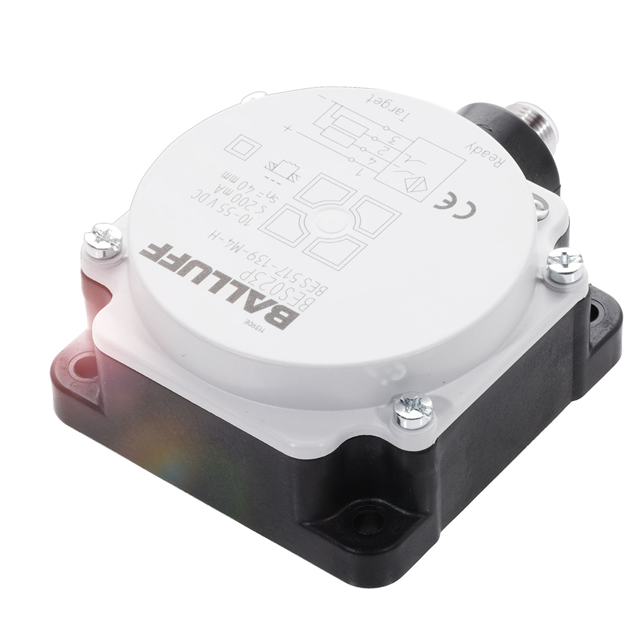

BES023W
SENSOR PROX INDUCT 50.00MM MOD
Technical Specifications
Parameters and characteristics for this part
| Specification | BES023W |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Polybutylene Terephthalate (PBT) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NC, NO, 4-Wire |
| Package / Case | Module |
| Sensing Distance | 1.969 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 55 V |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
