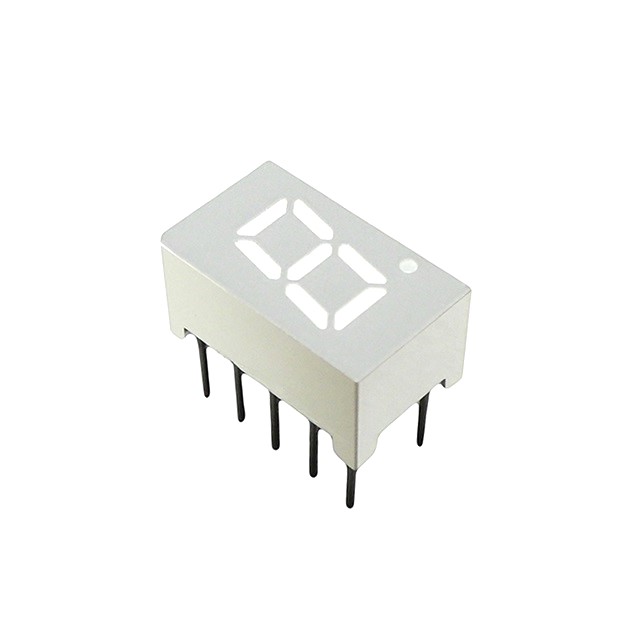

QBSLDO300GR
ActiveQT Brightek (QTB)
DISPLAY 7SEG 0.3" SGL ORG 10DIP
QBSLDO300GR
ActiveQT Brightek (QTB)
DISPLAY 7SEG 0.3" SGL ORG 10DIP
Description
General part information
QBSLDO300GR
Display Modules - LED Character and Numeric Orange 7-Segment 1 Character Common Anode 2V 20mA 0.500" H x 0.299" W x 0.250" D (12.70mm x 7.60mm x 6.35mm) 10-DIP (0.200", 5.08mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | QBSLDO300GR |
|---|---|
| Color | Orange |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.3 in |
| Display Type | 7-Segment |
| Millicandela Rating | 24 mcd |
| Number of Characters | 1 |
| Package Length | 5.08 mm |
| Package Name | 10-DIP |
| Package Width | 5.08 mm |
| Power Dissipation (Max) | 48 mW |
| Size / Dimension Depth | 0.25 in |
| Size / Dimension Height | 0.5 in |
| Size / Dimension Width | 0.299 in |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 610 nm |
