XW1E-BV411M-R
ActiveEMERGENCY STOP SWITCH, DPST-1NO, SPST-NC, PUSHLOCK RESET/PUSH-PULL, SCREW, 5 A, 250 V, 250 V
Deep-Dive with AI
Search across all available documentation for this part.
XW1E-BV411M-R
ActiveEMERGENCY STOP SWITCH, DPST-1NO, SPST-NC, PUSHLOCK RESET/PUSH-PULL, SCREW, 5 A, 250 V, 250 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XW1E-BV411M-R | XW1E Series |
|---|---|---|
| - | - | |
| Circuit | DPST-NO/NC | DPST-NO/NC, 4PST-NC, 3PST-2NC/1NO, 4PST-2NO/2NC, DPST-NC |
| Current Rating (Amps) | 2 A, 5 A | 2 - 5 A |
| Features | - | Illuminated (Red) |
| Illumination Voltage (Nominal) | - | 24 VAC/DC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 60 °C | 55 - 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm | 22.3 mm |
| Reset Operation | Pull or Twist | Pull or Twist |
| Switch Function | On-Off, Off-On | On-Off, Off-On |
| Termination Style | Screw Terminal | Screw Terminal |
| Voltage Rating - AC | 125 V | 125 V |
| Voltage Rating - DC | 30 V | 30 V |
XW1E Series
EMERGENCY STOP SWITCH, DPST-1NO, SPST-NC, PUSHLOCK RESET/PUSH-PULL, SCREW, 5 A, 250 V, 250 V
| Part | Mounting Type | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Reset Operation | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Switch Function | Circuit | Ingress Protection | Features | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEC Corporation XW1E-BV411M-R | Panel Mount, Front | 125 V | -25 °C | 60 °C | Screw Terminal | Pull or Twist | 30 V | 22.3 mm | 2 A, 5 A | Off-On, On-Off | DPST-NO/NC | IP65 - Dust Tight, Water Resistant | ||
IDEC Corporation XW1E-LV404Q4M-R | Panel Mount, Front | 125 V | -25 °C | 55 °C | Screw Terminal | Pull or Twist | 30 V | 22.3 mm | 2 A, 5 A | On-Off | 4PST-NC | IP65 - Dust Tight, Water Resistant | Illuminated (Red) | 24 VAC/DC |
IDEC Corporation XW1E-BV404M-R | Panel Mount, Front | 125 V | -25 °C | 60 °C | Screw Terminal | Pull or Twist | 30 V | 22.3 mm | 2 A, 5 A | On-Off | 4PST-NC | IP65 - Dust Tight, Water Resistant | ||
IDEC Corporation XW1E-BV513M-R | ||||||||||||||
IDEC Corporation XW1E-TV412Q4M-R | Panel Mount, Front | 125 V | -25 °C | 55 °C | Screw Terminal | Pull or Twist | 30 V | 22.3 mm | 2 A, 5 A | Off-On, On-Off | 3PST-2NC/1NO | IP65 - Dust Tight, Water Resistant | Illuminated (Red) | 24 VAC/DC |
IDEC Corporation XW1E-LV422Q4M-R | Panel Mount, Front | 125 V | -25 °C | 55 °C | Screw Terminal | Pull or Twist | 30 V | 22.3 mm | 2 A, 5 A | Off-On, On-Off | 4PST-2NO/2NC | IP65 - Dust Tight, Water Resistant | Illuminated (Red) | 24 VAC/DC |
IDEC Corporation XW1E-BV402M-R | Panel Mount, Front | 125 V | -25 °C | 60 °C | Screw Terminal | Pull or Twist | 30 V | 22.3 mm | 2 A, 5 A | On-Off | DPST-NC | IP65 - Dust Tight, Water Resistant | ||
IDEC Corporation XW1E-LV402Q4M-R | Panel Mount, Front | 125 V | -25 °C | 55 °C | Screw Terminal | Pull or Twist | 30 V | 22.3 mm | 2 A, 5 A | On-Off | DPST-NC | IP65 - Dust Tight, Water Resistant | Illuminated (Red) | 24 VAC/DC |
IDEC Corporation XW1E-BV422M-R | Panel Mount, Front | 125 V | -25 °C | 60 °C | Screw Terminal | Pull or Twist | 30 V | 22.3 mm | 2 A, 5 A | Off-On, On-Off | 4PST-2NO/2NC | IP65 - Dust Tight, Water Resistant |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
XW1E Series

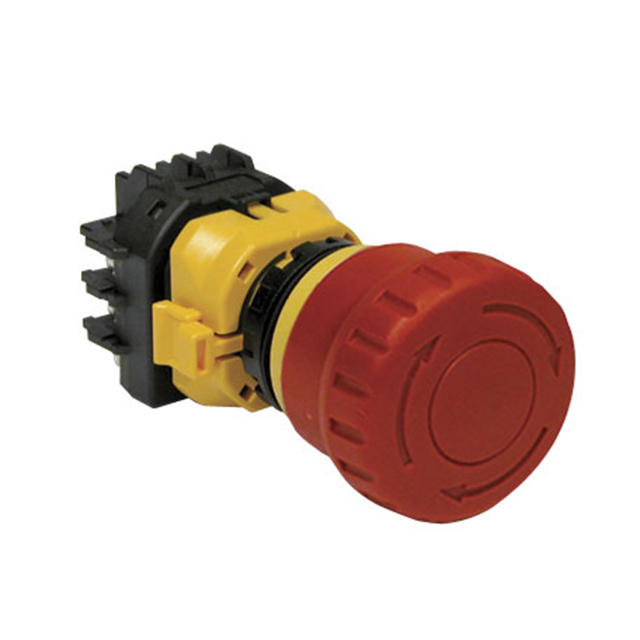

The XW1E-BV411M-R is a 40mm single or double-pole single-throw (SPST/DPST) safest Emergency Stop Switch with mushroom head, finger-safe screw terminal and 1NO-1NC contacts. The XW-series with safe break action ensures that the NC contacts open when the contact block is detached from the operator. Direct opening action mechanism.
