BAC8015
ActivePasternack
CONN FME M RG58 CRIMP
BAC8015
ActivePasternack
CONN FME M RG58 CRIMP
Description
General part information
BAC8015

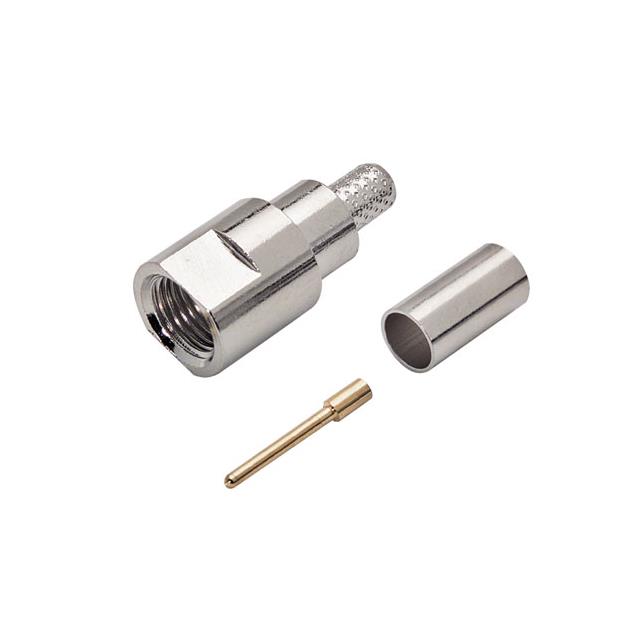

FME Connector Plug, Male Pin Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BAC8015 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | LMR-195, RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | FME |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
