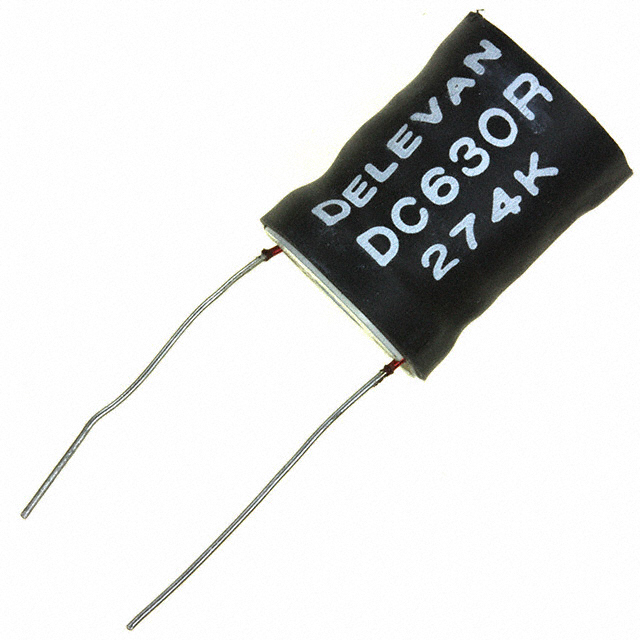

DC630R-274K
270 µH Unshielded Drum Core, Wirewound Inductor 2.09 A 225mOhm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | DC630R-274K |
|---|---|
| Current - Saturation (Isat) | 4.2 A |
| Current Rating | 2.09 A |
| DC Resistance (DCR) (Max) | 225 mOhm |
| Height - Seated (Max) | 0.83 in |
| Inductance | 270 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder, Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
