2345394-2

Active

TE Connectivity AMP Connectors

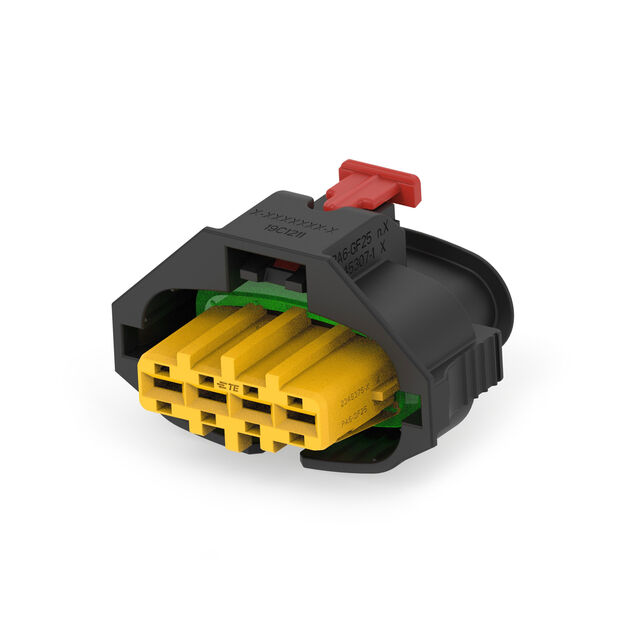

AUTOMOTIVE CONNECTOR HOUSING, BLACK, SUPERSEAL PRO SERIES, RECEPTACLE, 4 POSITIONS

Find alt

Alpha

2345394-2

Active

TE Connectivity AMP Connectors

AUTOMOTIVE CONNECTOR HOUSING, BLACK, SUPERSEAL PRO SERIES, RECEPTACLE, 4 POSITIONS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Superseal Pro Series

2345394-2 is a 4 position sensor flat receptacle connector (Code I). Sensor Flat connectors offers a high reliability and vibration resistance with high-value solution for engine sensor connectivity. These connectors provide a dependable connectivity with large variety of engine sensor interfaces for almost any application. This family incorporates Connector Position Assurance (CPA) technology, which ensures proper terminal positioning, making them ideal for engine applications in harsh environments. Connector designed to operate in different temperature for different materials and ensured for high degree of protection meeting IP67, IP6K9K sealing level (with back shell). Applications includes sensors, gauges and actuators. Target markets are industrial and commercial transportation (ICT), agriculture, automotive, bus, construction, marine, lift truck, specialty vehicles, power sports, recreational and truck.

Technical Specifications

Parameters and characteristics for this part

Specification	2345394-2

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Connector Position Assurance (CPA), Sealed
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	1
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in

Superseal Pro Series

...

Part	Connector Type	Number of Positions	Number of Rows	Fastening Type	Color	Contact Type	Mounting Type	Pitch	Features	Operating Temperature (Max)	Operating Temperature (Min)	Contact Termination	Insulation Material	Accessory Type
TE Connectivity AMP Connectors 2356631-2	Receptacle	4	2	Latch Holder	Black	Tab	Free Hanging (In-Line)	0.197 in	Sealed	125 °C	-40 °C	Crimp	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 2375555-3	Housing for Female Insert	8	2	Latch Lock	Black	Female Socket	Free Hanging (In-Line)	0.185 in	Sealed	125 °C	-40 °C	Crimp	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 2050052-3	Receptacle	4	1	Latch Lock	Black	Female Socket	Free Hanging (In-Line)	0.197 in	Sealed	120 °C	-40 °C	Crimp
TE Connectivity AMP Connectors 2363791-2														Backshell
TE Connectivity AMP Connectors 1-2356631-4	Receptacle	3	2	Latch Holder	Black	Tab	Free Hanging (In-Line)	0.197 in		125 °C	-40 °C	Crimp	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 1-2375555-2
TE Connectivity AMP Connectors 2356607-3	Plug	4	2	Latch Lock	Black	Female Socket	Free Hanging (In-Line)	0.197 in	Sealed	125 °C	-40 °C	Crimp
TE Connectivity AMP Connectors 1-2356607-2	Plug	3	2	Latch Lock	Black	Male Pin	Free Hanging (In-Line)	0.197 in		125 °C	-40 °C	Crimp	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 3-2356631-2	Receptacle	3	2	Latch Holder	Black	Tab	Free Hanging (In-Line)	0.197 in		125 °C	-40 °C	Crimp	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 2050049-1	Housing for Female Insert	3	1	Latch Holder	Black	Female Socket	Free Hanging (In-Line)	0.197 in	Terminal Position Lock (TPA)	120 °C	-40 °C	Crimp	Glass Filled Nylon Polyamide (PA)
