GFTX-17
ActiveCurtis Industries
BLACK BARRIER TERMINAL BLOCKS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GFTX-17
ActiveCurtis Industries
BLACK BARRIER TERMINAL BLOCKS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GFTX-17 | GFTX Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Solder Turret, Insulated | Solder Turret, Insulated |
| Color | Black | Black |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 17 | 2 - 23 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 17 | 2 - 17 |
| Number of Wire Entries | - | 22 - 23 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
GFTX Series
CONN BARRIER STRP 12CIRC 0.438"
| Part | Material - Insulation | Bottom Termination | Barrier Type | Terminal Screw Material | Top Termination | Number of Rows | Material Flammability Rating | Number of Wire Entries | Pitch [x] | Pitch [x] | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Block Type | Color | Mounting Type | Number of Circuits | Operating Temperature | Current Rating (Amps) | Features | Number of Circuits [custom] | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries GFTX-12 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 12 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 12 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-4 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 4 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 4 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-8 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 8 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 110 °C | 20 A | Flange | 8 | ||
Curtis Industries GFTX-3 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 3 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 3 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-14 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 14 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 14 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-22 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 22 | 110 °C | 20 A | Flange | 22 | ||
Curtis Industries GFTX-17 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 17 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 17 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-2 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 2 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 2 | 110 °C | 20 A | Flange | ||
Curtis Industries GFTX-23 | Polyphenylene Oxide (PPO) | Solder Turret, Insulated | 2 Wall (Dual) | Steel | Screws | 1 | UL94 V-0 | 11.12 mm | 0.438 in | 12 AWG | 22 AWG | Barrier Block | Black | Chassis, Panel | 23 | 110 °C | 20 A | Flange | 23 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GFTX Series

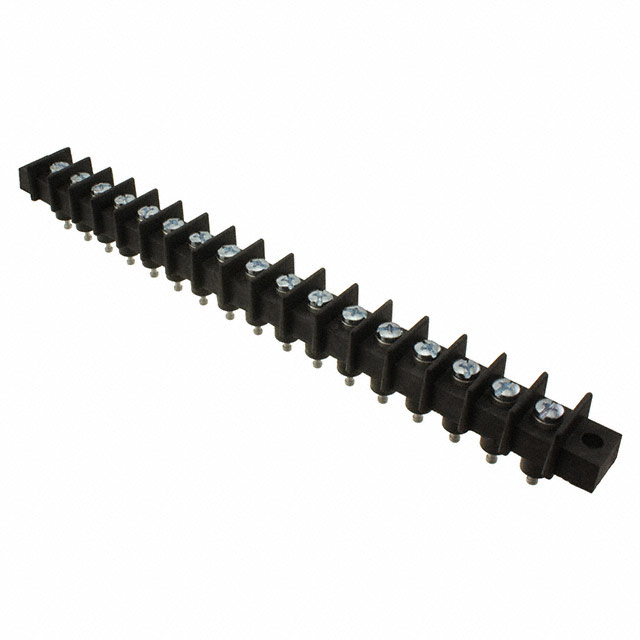

17 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
