Description
General part information

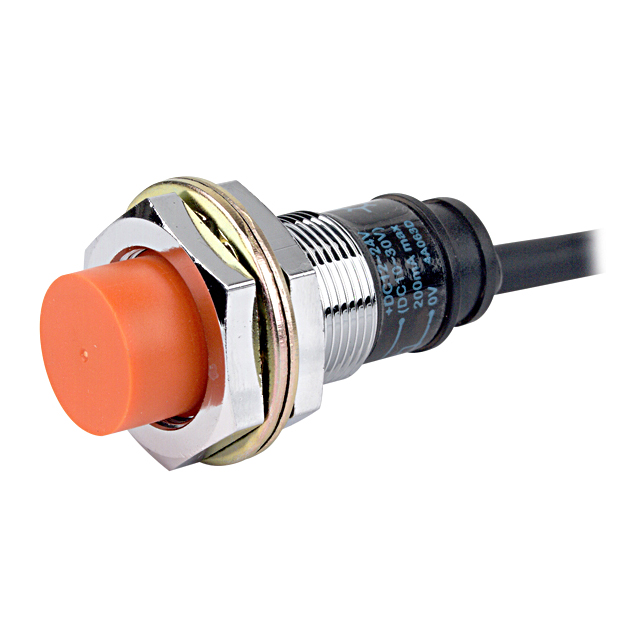

PRDT18-14DC
SENSOR PROX INDUCTIVE 14MM CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | PRDT18-14DC |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NC, 2-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Response Frequency | 200 Hz |
| Sensing Distance | 0.551 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
