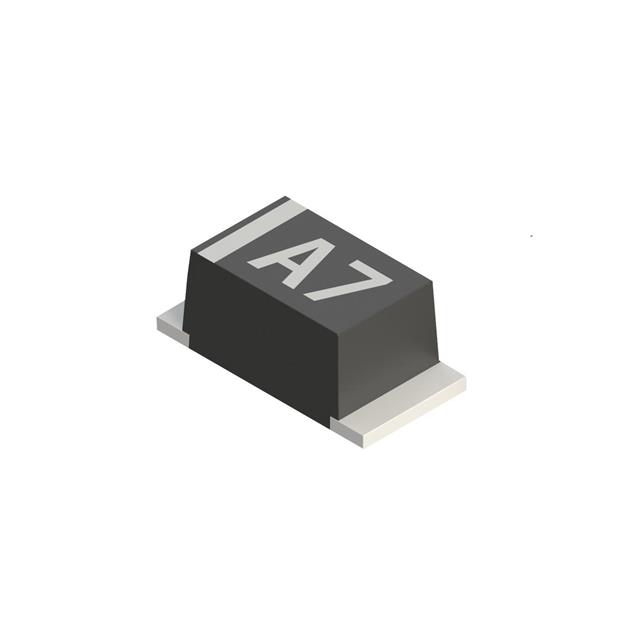

FM4007-N-H
ActiveTaiwan Semiconductor Corporation
DIODE GEN PURP 1KV 1A SOD323
FM4007-N-H
ActiveTaiwan Semiconductor Corporation
DIODE GEN PURP 1KV 1A SOD323
Description
General part information
FM4007-N-H
Diode 1000 V 1A Surface Mount SOD-323
Technical Specifications
Parameters and characteristics for this part
| Specification | FM4007-N-H |
|---|---|
| Capacitance | 3.5 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 150 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | SOD-323F, SC-90 |
| Package Name | SOD-323 |
| Speed | Standard Recovery |
| Speed - Fast Recovery (Minimum) | 200 mA, 500 ns |
| Speed - Recovery Current | 200 mA, 200 mA |
| Speed - Recovery Time | 500 ns |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1 kV |
| Voltage - Forward (Vf) (Max) | 1.1 V |
