CPS-5933-6105PM
ActiveSame Sky (Formerly CUI Devices)

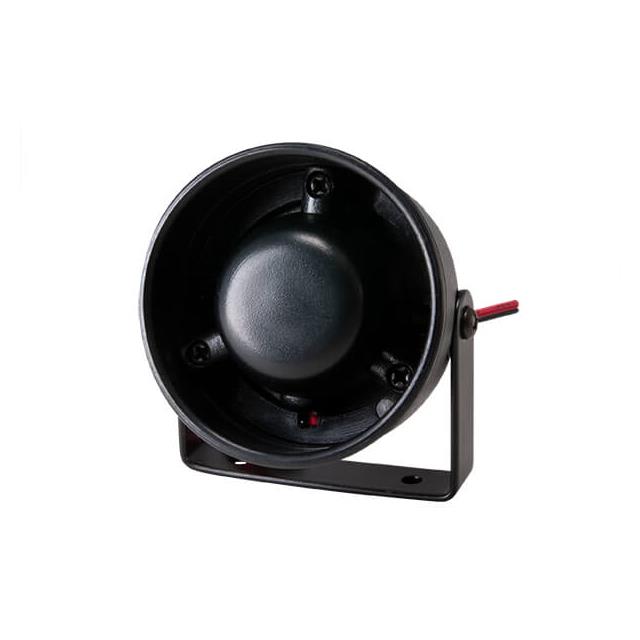

BUZZER 24V 59X33MM BLACK
CPS-5933-6105PM
ActiveSame Sky (Formerly CUI Devices)
BUZZER 24V 59X33MM BLACK
Description
General part information
CPS-5933-6105PM
Buzzers Indicator, Internally Driven 24 V 130mA 90dB @ 24V, 100cm Bracket Mount Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CPS-5933-6105PM |
|---|---|
| Current - Supply | 130 mA |
| Driver Circuitry | Indicator, Internally Driven |
| Height - Seated (Max) | 1.417 in |
| Ingress Protection | IP44 |
| Input Type | DC |
| Mounting Type | Bracket Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | User Defined |
| Size / Dimension Length | 2.323 in |
| Size / Dimension Width | 2.579 in |
| Sound Pressure Level (SPL) | 90 dB |
| Termination | Wire Leads |
| Voltage - Rated | 24 VAC |
| Voltage Range (Max) | 24 V |
| Voltage Range (Min) | 12 V |
