Description
General part information

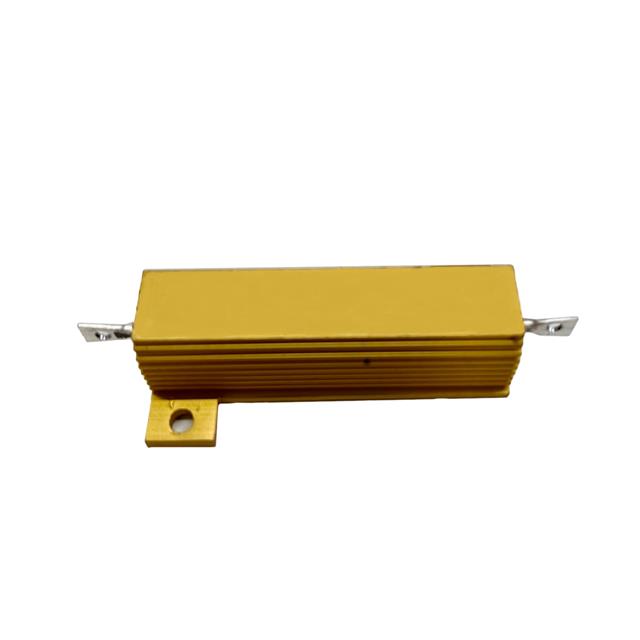

NHS50 50R J
50 Ohms ±5% 50W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | NHS50 50R J |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Features | Non-Inductive, Pulse Withstanding |
| Height - Seated (Max) | 0.583 in |
| Housing Type | Aluminum |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Package / Case | Box, Axial |
| Power (Watts) | 50 W |
| Resistance | 50 Ohms |
| Size / Dimension Length | 1.933 in |
| Size / Dimension Width | 1.102 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
