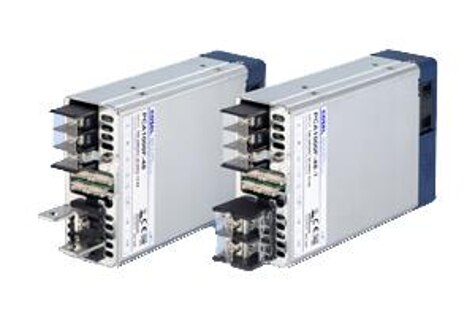

Specification	PCA1000F-12-I

Applications	ITE (Commercial), Medical
Approval Agency	cURus, CE, UKCA, DEMKO
Current - Output 1	88 A
Efficiency	92 %
Features	Universal Input, PFC, PMBus™
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	1 kW
Size / Dimension Height	1.61 in
Size / Dimension Length	7.01 in
Size / Dimension Width	4.02 in
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	4000 Vpk
Voltage - Output 1	12 V

PCA Series

...

Part	Standard Number	Voltage - Output 1	Voltage - Isolation	Efficiency	Power (Watts)	Applications	Approval Agency	Voltage - Input (AC) Maximum	Voltage - Input (DC) Minimum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Maximum	Current - Output 1	Number of Outputs	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Features	Type	Mounting Type
Cosel USA, Inc. PCA600F-12-W1	60601-1 60950-1 62368-1	12 V	4000 Vpk	92 %	636 W	ITE (Commercial) Medical	CE CSA cURus D-Mark UL	264 V	88 VDC	85 VAC	370 V	53 A	1	1.61 in	3.5 in	5.98 in	70 °C	-20 °C	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Enclosed	Chassis Mount
Cosel USA, Inc. PCA600F-48-I	60601-1 62368-1	48 V	4000 Vpk	93 %	624 W	ITE (Commercial) Medical	CE cURus DEMKO UKCA	264 V	88 VDC	85 VAC	370 V	13 A	1	1.61 in	3.5 in	5.98 in	70 °C	-20 °C	DC Input Capable PFC PMBus™ Universal Input	Enclosed	Chassis Mount
Cosel USA, Inc. PCA1000F-32-C	60601-1 60950-1 62368-1	32 V	4000 Vpk	93 %	1056 W	ITE (Commercial) Medical	CE CSA cURus D-Mark UL	264 V		85 VAC		33 A	1	1.61 in	4.02 in	7.01 in	70 °C	-20 °C	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Conformal Coated Enclosed	Chassis Mount
Cosel USA, Inc. PCA600F-32-F2	60601-1 60950-1 62368-1	32 V	4000 Vpk	93 %	640 W	ITE (Commercial) Medical	CE CSA cURus D-Mark UL	264 V	88 VDC	85 VAC	370 V	20 A	1	1.61 in	3.5 in	5.98 in	70 °C	-20 °C	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Enclosed	Chassis Mount
Cosel USA, Inc. PCA600F-24-C	60601-1 60950-1 62368-1	24 V	4000 Vpk	93 %	648 W	ITE (Commercial) Medical	CE CSA cURus D-Mark UL	264 V	88 VDC	85 VAC	370 V	27 A	1	1.61 in	3.5 in	5.98 in	70 °C	-20 °C	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Conformal Coated Enclosed	Chassis Mount
Cosel USA, Inc. PCA1000F-12-P3	60601-1 60950-1 62368-1	12 V	4000 Vpk	92 %	1056 W	ITE (Commercial) Medical	CE CSA cURus D-Mark UL	264 V		85 VAC		88 A	1	1.61 in	4.02 in	7.01 in	70 °C	-20 °C	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Enclosed	Chassis Mount
Cosel USA, Inc. PCA1000F-12	60601-1 60950-1 62368-1	12 V	4000 Vpk	92 %	1056 W	ITE (Commercial) Medical	CE CSA cURus D-Mark UL	264 V		85 VAC		88 A	1	1.61 in	4.02 in	7.01 in	70 °C	-20 °C	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Enclosed	Chassis Mount
Cosel USA, Inc. PCA1000F-15-F2	60601-1 60950-1 62368-1	15 V	4000 Vpk	92 %	1050 W	ITE (Commercial) Medical	CE CSA cURus D-Mark UL	264 V		85 VAC		70 A	1	1.61 in	4.02 in	7.01 in	70 °C	-20 °C	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Enclosed	Chassis Mount
Cosel USA, Inc. PCA1000F-5-C	60601-1 60950-1 62368-1	5 V	4000 Vpk	91 %	1 kW	ITE (Commercial) Medical	CE CSA cURus D-Mark UL	264 V		85 VAC		200 A	1	1.61 in	4.02 in	7.01 in	70 °C	-20 °C	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Conformal Coated Enclosed	Chassis Mount
Cosel USA, Inc. PCA300F-48-F2	60601-1 60950-1 62368-1	48 V	4000 Vpk	91 %	336 W	ITE (Commercial) Medical	CE CSA cURus D-Mark UL	264 V	88 VDC	85 VAC	370 V	7 A	1	1.61 in	3.5 in	5.98 in	70 °C	-20 °C	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	Enclosed	Chassis Mount
