1-176975-9

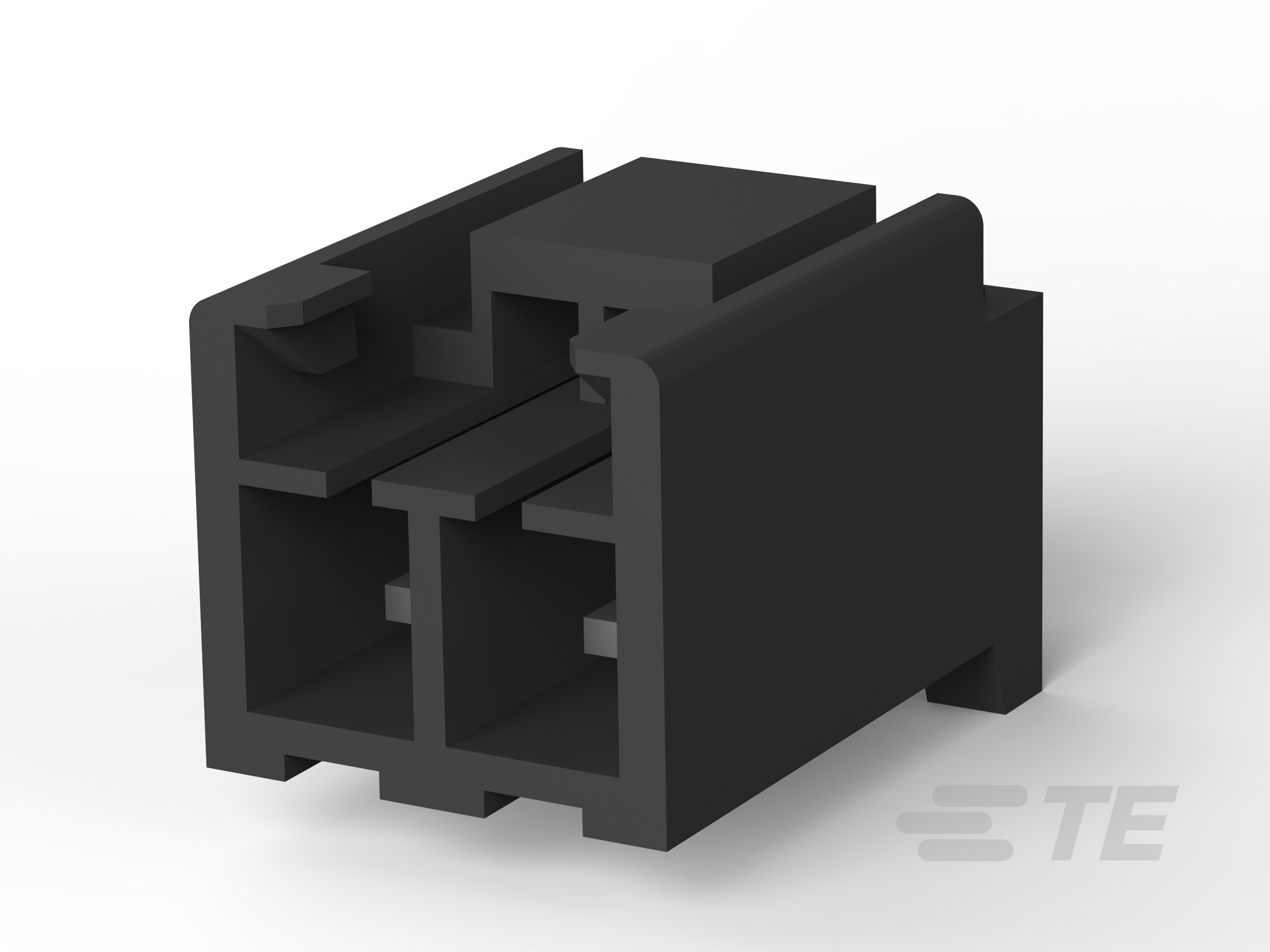

PCB Mount Header, Vertical, Wire-to-Board, 2 Position, 3.96 mm [.155 in] Centerline, Fully Shrouded, Tin (Sn), AMP Universal Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-176975-9 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.142 in |
| Contact Material | Brass |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Current Rating | 0 A |
| Current Rating | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Insulation Color | Black |
| Insulation Height | 0.551 in |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch - Mating | 0.156 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
