DS0803812U2B-BT0
ActiveWakefield Thermal Solutions

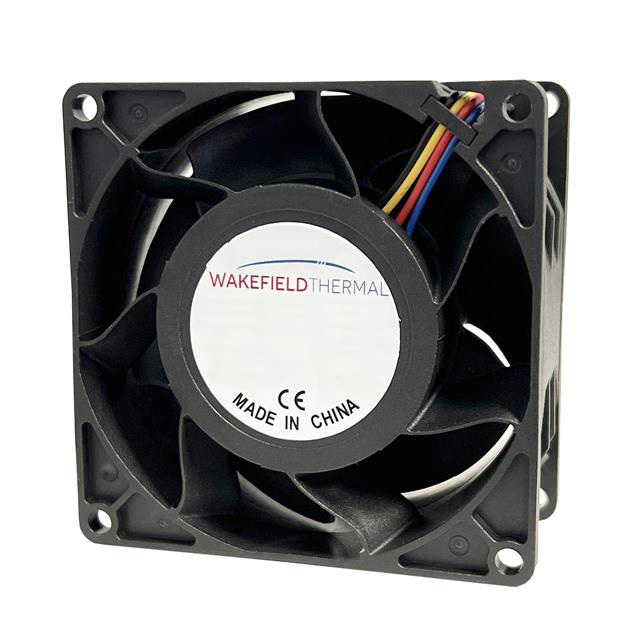

FAN AXIAL 80X38MM 12VDC WIRE
DS0803812U2B-BT0
ActiveWakefield Thermal Solutions
FAN AXIAL 80X38MM 12VDC WIRE
Description
General part information
DS0803812U2B-BT0
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 123.6 CFM (3.46mł/min) 4 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | DS0803812U2B-BT0 |
|---|---|
| Air Flow | 123.6 CFM |
| Approval Agency | CE |
| Bearing Type | Ball |
| Current Rating | 4.2 A |
| Fan Type | Tubeaxial |
| Features | PWM Control, Speed Sensor (Tach) |
| Lifetime | 70000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 72.5 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 50.4 W |
| RPM | 15000 RPM |
| Size / Dimension Height | 80 mm |
| Size / Dimension Length | 80 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 4.383 in H2O |
| Termination | 4 Wire Leads |
| Termination Leads Count | 4 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 12 VAC |
| Width | 38 mm |
