AB2746B-LW100-R
ActivePUI Audio, Inc.

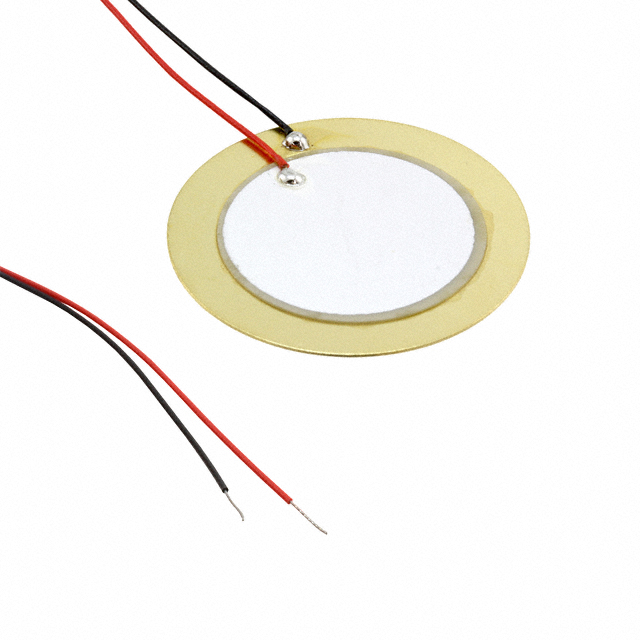

PIEZO BENDER, 4.6 KHZ, 0.016 UF, 250 OHM, 1.07" DIA, 0.03" H
AB2746B-LW100-R
ActivePUI Audio, Inc.
PIEZO BENDER, 4.6 KHZ, 0.016 UF, 250 OHM, 1.07" DIA, 0.03" H
Description
General part information
AB2746B-LW100-R
4.6 kHz Standard Buzzer Element 30V p-p 1.063" Dia (27.00mm) 250 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | AB2746B-LW100-R |
|---|---|
| Capacitance | 16000 pF |
| Frequency | 4.6 kHz |
| Impedance | 250 Ohm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Diameter | 1.063 in |
| Termination | Wire Leads |
| Type | Standard |
| Voltage - Input (Max) | 30 V p-p |
