6-1437667-9
ObsoleteTE Connectivity AMP Connectors

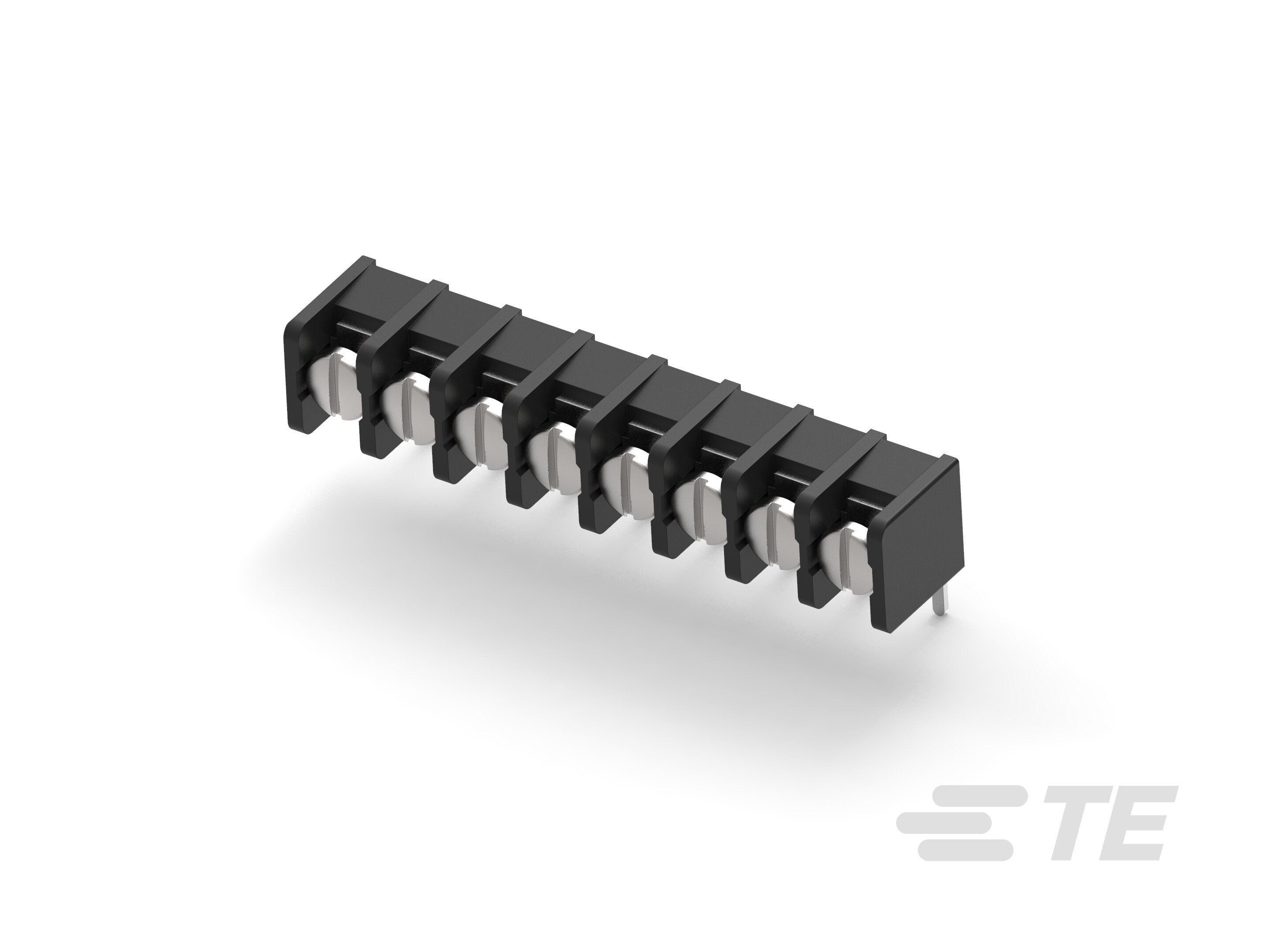

CONN BARRIER STRIP 8CIRC 0.325"
6-1437667-9
ObsoleteTE Connectivity AMP Connectors
CONN BARRIER STRIP 8CIRC 0.325"
Description
General part information
1437667 Series
8 Position Barrier Strip, Dual Barrier, Printed Circuit Pin Bottom Termination, Wire-to-Board, 8.26 mm [.325 in] Centerline, 1 Row, 150 V / 300 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-1437667-9 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating | 20 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Circuits | 8 |
| Number of Rows | 1 |
| Number of Wire Entries | 8 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.325 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Clear Chromate, Zinc |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 150 VDC |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
