140716-2
ActiveTE Connectivity AMP Connectors

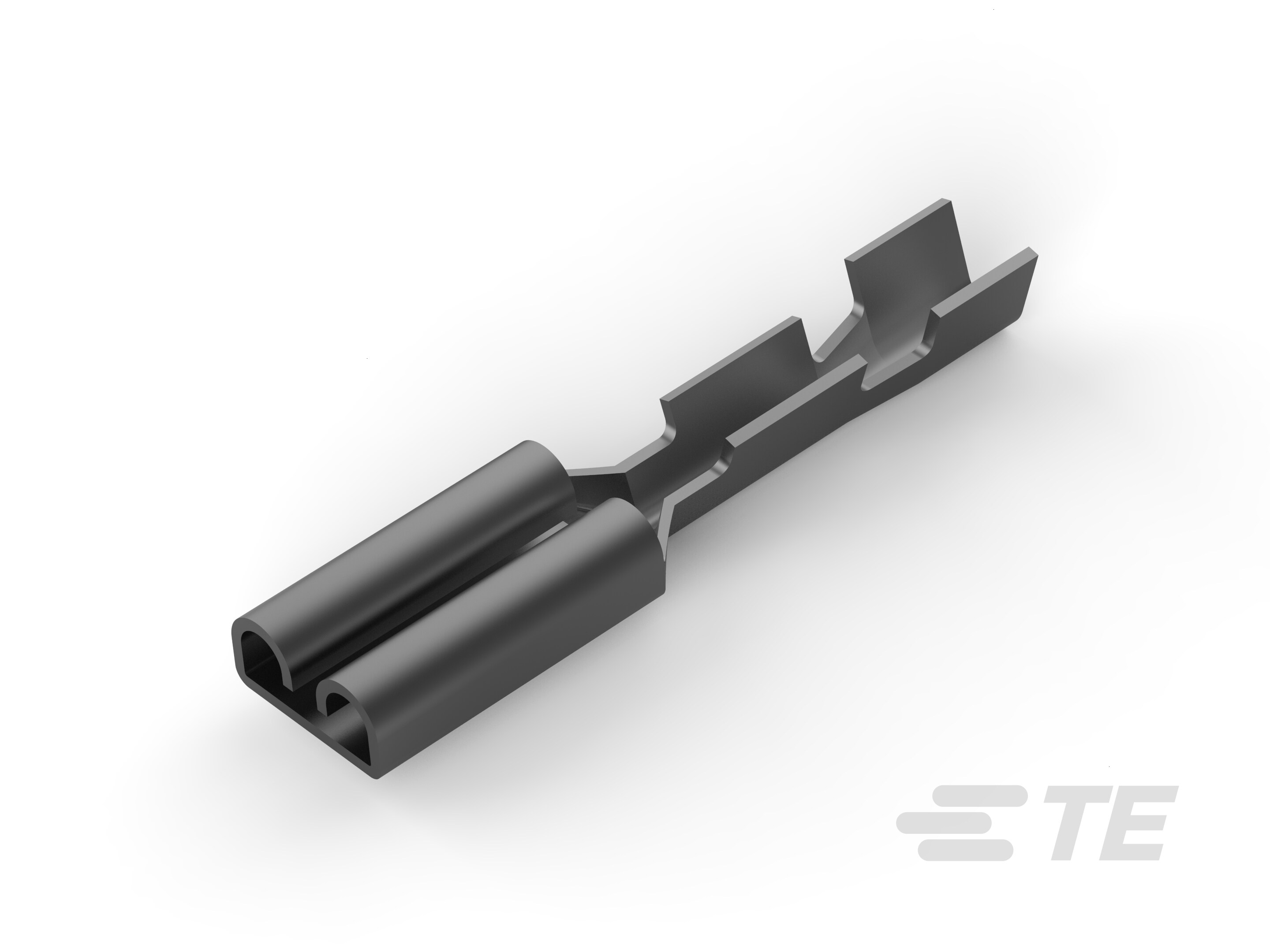

110 FASTON,REC.,24-22 AWG,PTBR
140716-2
ActiveTE Connectivity AMP Connectors
110 FASTON,REC.,24-22 AWG,PTBR
Description
General part information
FASTON 110 Series
Quick Disconnect Receptacle, 24 – 22 AWG, .25 – .34 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Brass, Pre-Tin Plating, Strip/Reel, FASTON 110
Technical Specifications
Parameters and characteristics for this part
| Specification | 140716-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.06 in |
| Insulation Diameter (Min) | 0.04 in |
| Length - Overall | 0.63 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.248 in |
| Tab Thickness | 0.02 in |
| Tab Width | 0.11 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
