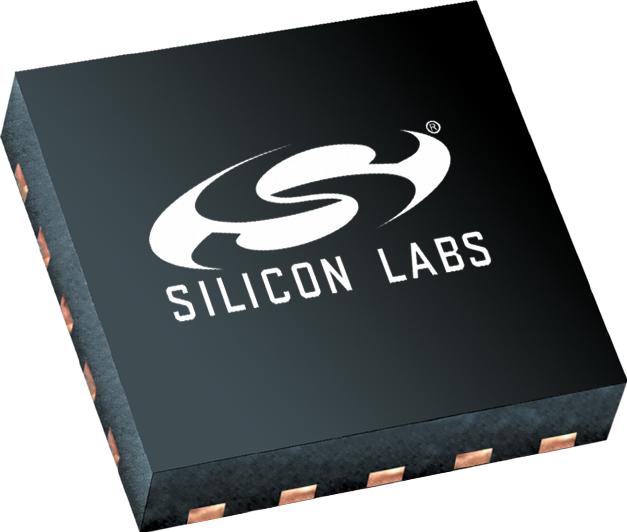

EFM8UB10F16G-C-QFN20R
ActiveSILICON LABS
8051 25 MHZ 16 KB FLASH 2 KB RAM 8-BIT UNIVERSAL BEE MCU
EFM8UB10F16G-C-QFN20R
ActiveSILICON LABS
8051 25 MHZ 16 KB FLASH 2 KB RAM 8-BIT UNIVERSAL BEE MCU
Description
General part information
EFM8UB10F16G-C-QFN20R
8051 25 MHZ 16 KB FLASH 2 KB RAM 8-BIT UNIVERSAL BEE MCU
Technical Specifications
Parameters and characteristics for this part
| Specification | EFM8UB10F16G-C-QFN20R |
|---|---|
| A/D Channels | 11 count |
| A/D Resolution (bits) | 12 bit |
| Connectivity | USART, SPI, UART, I2C, SMBus, USB |
| Core Processor | CIP-51 8051 |
| Core Size (Bit Width) | 8 Bit |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 20-WFQFN Exposed Pad |
| Package Length | 3 mm |
| Package Name | 20-QFN |
| Package Width | 3 mm |
| Peripherals | WDT, PWM, Brown-out Detect, POR, Reset |
| Program Memory Depth | 16 K |
| Program Memory Size | 16 KB |
| Program Memory Type | FLASH |
| Program Memory Width | 8 bit |
| RAM Size Depth | 2.25 K |
| RAM Size Width | 8 bit |
| Speed | 50 MHz |
| Voltage - Supply (Vcc/Vdd) Maximum | 3.6 V |
| Voltage - Supply (Vcc/Vdd) Minimum | 1.71 V |
