EKI-9510G-2GMPH-AE
LTBAdvantech Corporation
EN50155 M12 8GE POE + 2G MANAGED
EKI-9510G-2GMPH-AE
LTBAdvantech Corporation
EN50155 M12 8GE POE + 2G MANAGED
Description
General part information

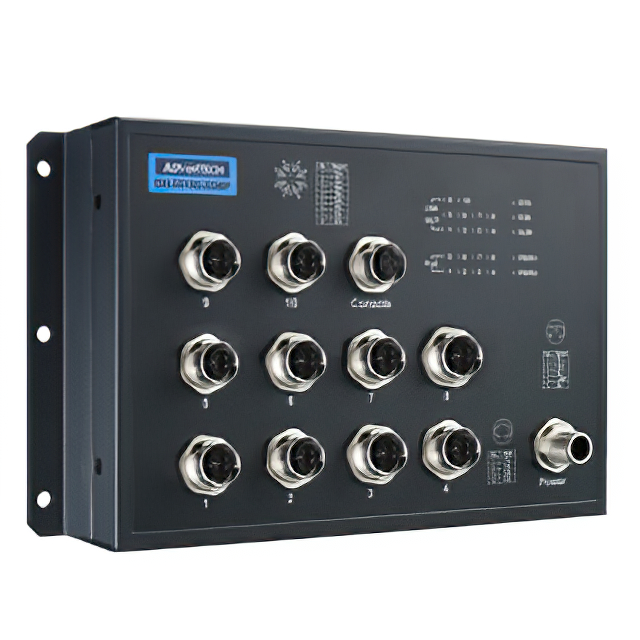

EKI-9510G-2GMPH-AE
Network Switch - Managed 10 Ports IP40
Technical Specifications
Parameters and characteristics for this part
| Specification | EKI-9510G-2GMPH-AE |
|---|---|
| Configuration | Fixed |
| Connector Type | M12 |
| Copper Ports | 10 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Ingress Protection | IP40 |
| Mounting Type | Wall Mount |
| Number of Ports | 10 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| PoE Ports | 8 |
| Type | Switch - Managed |
| Voltage - Input (DC) Maximum | 137.5 VDC |
| Voltage - Input (DC) Minimum | 50.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
