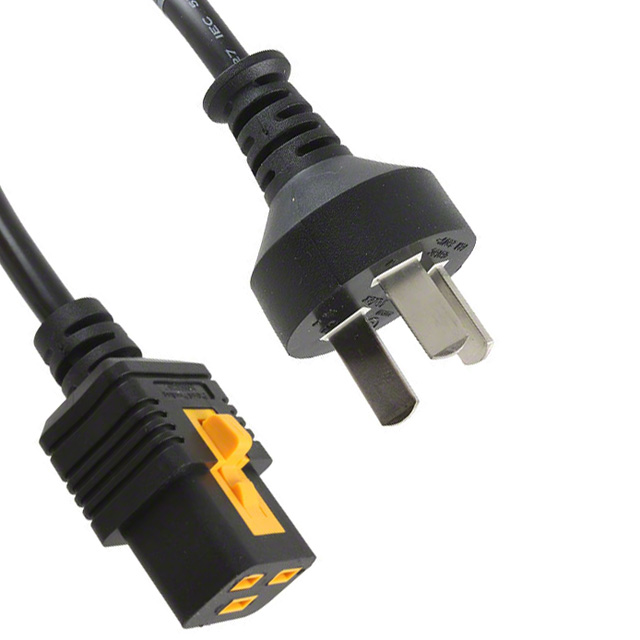

Specification	6051.2052

1st Connector	GB2099
2nd Connector	IEC 320-C19
Approval Agency Marking	CCC
Approved Countries	China
Color	Black
Cord Type	RVV 300/500
Current Rating	16 A
Features	V-Lock
Length	6.56 ft
Number of Conductors	3
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Shielding	Unshielded
Style	Female Sockets (Slots), Male Pins (Blades)
Voltage Rating	250 V
Wire Gauge	16 AWG

- Series

...

Part	Color	Length	Number of Positions	Connector Type	Features	Orientation	Material Flammability Rating	Fastening Type	Shell Material	Shielding	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Primary Material	Shell Size - Insert	Contact Finish - Mating	Mounting Type	Termination	Voltage Rating	Contact Rating (Current)	Actuator Height off PCB (Vertical)	Switch Function	Operating Force	Termination Style	Actuator Type	Illumination	Outline Width	Outline Length	Circuit	Actuator Orientation	Ingress Protection	Mechanical Life (Cycles)	Switch Travel	Approval Agency Marking	Wire Gauge	Style	Cord Type	Number of Conductors	1st Connector	Approved Countries	2nd Connector	Cable Type	Connector Inner Diameter (1)	Connector Outer Diameter (1)
SCHURTER Inc. 6051.2005	Black	6.56 ft
SCHURTER Inc. 4850.2310	Black		3	Female Sockets Receptacle	Board Lock Ground	Keyed	UL94 V-0	Push-Pull	Thermoplastic	Shielded	2 A	70 °C	-20 °C	Plastic	Mini DIN	Silver	Right Angle Through Hole	Solder	12 V
SCHURTER Inc. 1301.9304					Tactile Feedback							70 °C	-20 °C				Through Hole			0.05 A	7.3 mm	Off-Mom	160 gf	PC Pin	Standard	Non-Illuminated	6 mm	6 mm	SPST-NO	Top Actuated	IP40	100000 Cycles	0.25 mm
SCHURTER Inc. 6051.2007	Black	6.56 ft			V-Lock					Unshielded	10 A	70 °C	-25 °C						250 V															CCC CSA UL VDE	18 AWG	Female Sockets (Slots) Male Pins (Blades)	H05VV-F3G1.0 SVT	3	IEC 320-C14	Canada China Germany United States	IEC 320-C13
SCHURTER Inc. 6051.2043	Black	6.56 ft			V-Lock					Unshielded	16 A	70 °C	-25 °C						250 V															VDE	16 AWG	Female Sockets (Slots) Male Pins (Blades)	H05VV-F3G1.5	3	CEE 7/7	Germany	IEC 320-C19
SCHURTER Inc. 4840.5231		5.9 ft								Unshielded																										Plug Right Angle to Wire Leads						Round	4.3 mm	6.5 mm
SCHURTER Inc. 3-133-823	Black	9.84 ft								Unshielded	10 A	70 °C	-25 °C						125 V																	Female Sockets (Slots) Male Pins (Blades)	SJT	3	NEMA 5-15P		IEC 320-C13
SCHURTER Inc. 6009.5195	Black	8.2 ft									15 A	60 °C	-40 °C						125 V															CSA UL	14 AWG	Female Sockets (Slots) Male Pins (Blades)	SJT	3	NEMA 5-15P	Canada United States	IEC 320-C19
SCHURTER Inc. 4850.3600	Black		6	Female Sockets Receptacle	Backshell Strain Relief	Keyed		Push-Pull			2 A	70 °C	-20 °C		Mini DIN	Silver	Free Hanging (In-Line)	Solder Cup	12 V
SCHURTER Inc. 0888.0221	Gray	10 ft			Hospital Grade Outdoor Use						15 A	85 °C	-40 °C						125 V															CSA UL	14 AWG	Female Sockets (Slots) Male Pins (Blades)	SJTW	3	NEMA 5-15P	Canada United States	IEC 320-C19
