152727

Obsolete

Beyond LED Technology

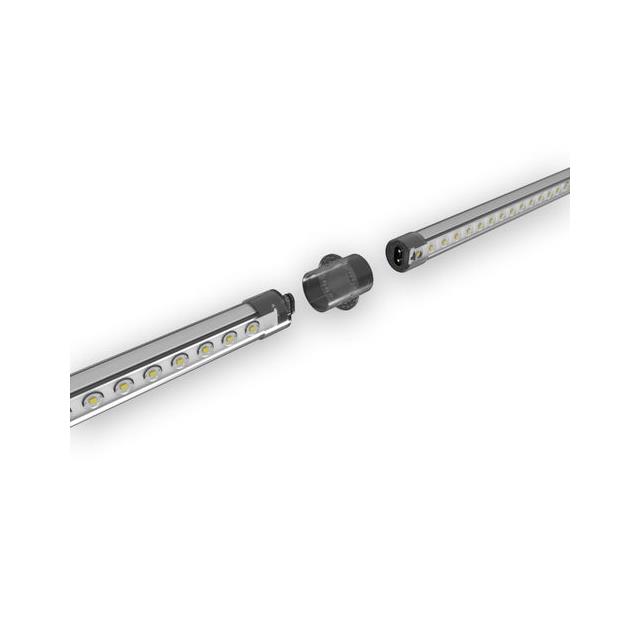

LED ENG CL WHT LNR STRIP 6500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

152727

Obsolete

Beyond LED Technology

LED ENG CL WHT LNR STRIP 6500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.99

Description

General part information

- Series

LED Lighting COBs Engines Modules LED Engine - White, Cool Linear Light Strip, Plug and Play

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	152727	- Series

CCT (K)	6500 K	5000 - 6500 K
CCT (K)	-	5000K, 4000K, 3000K
Color	Cool, White	Yellow, Cool, White, Red, White, Neutral, White, Cool, White, Warm, Green, Blue, Warm
Configuration	Linear Light Strip, Plug and Play	Linear Light Strip, Flexible, Plug and Play, Round, Rectangle, Square
CRI (Color Rendering Index)	80	80 - 90
Current - Max	-	180 - 203 mA
Features	-	IP67, IP22, Dimming, IP65, IP20
Height [z]	28.7 mm	1.78 - 33.02 mm
Lens Type	Tubular	Flat, Tubular
Light Emitting Surface (LES)	-	247.9 mm
Light Emitting Surface (LES)	-	247.9 mm
Light Emitting Surface (LES)	-	248.92 mm
Lumens/Watt @ Current - Test	125 lm/W	94 - 125 lm/W
Luminous Flux @ Current/Temperature	376 lm	376 - 4000 lm
Size / Dimension	-	8 - 291.85 in
Size / Dimension	-	19.05 mm
Size / Dimension [x]	304.8 mm	18 - 304.8 '
Type	LED Engine	LED Module, LED Engine
Viewing Angle	-	120 - 180 °
Voltage - Forward (Vf) (Typ)	198.5 VAC	12 - 198.5 V

- Series

LED MOD YELLOW LINEAR STRIP

Part	Lens Type	Features	Color	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Configuration	Type	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Height [z]	Luminous Flux @ Current/Temperature	CCT (K)	Viewing Angle	Size / Dimension [diameter]	CCT (K)	Current - Max [Max]	Size / Dimension [y]
Beyond LED Technology 153705	Flat	IP67	Yellow	50 '	120 V	Flexible, Linear Light Strip	LED Module
Beyond LED Technology 152727	Tubular		Cool, White	304.8 mm	198.5 VAC	Linear Light Strip, Plug and Play	LED Engine	125 lm/W	80	28.7 mm	376 lm	6500 K
Beyond LED Technology 152730	Tubular		Cool, White	42 in	198.5 VAC	Linear Light Strip, Plug and Play	LED Engine	125 lm/W	80	28.7 mm	1440 lm	6500 K	180 °
Beyond LED Technology 152733	Tubular		Cool, White	30 in	198.5 VAC	Linear Light Strip, Plug and Play	LED Engine	125 lm/W	80	26.67 mm	1644 lm	6500 K
Beyond LED Technology 153706	Flat	IP67	Red	50 '	120 V	Flexible, Linear Light Strip	LED Module
Beyond LED Technology 153845	Flat	IP22	Cool, White		24 V	Flexible, Linear Light Strip	LED Module	100 lm/W	90	1.78 mm	4000 lm	6000 K	180 °
Beyond LED Technology 154329	Flat	Dimming	White, Cool, White, Neutral, White, Warm		188.5 VAC	Plug and Play, Round	LED Module	100 lm/W			2200 lm			8 in	3000K, 4000K, 5000K
Beyond LED Technology 152729	Tubular		Cool, White	30 in	198.5 VAC	Linear Light Strip, Plug and Play	LED Engine	125 lm/W	80	28.7 mm	1008 lm	6500 K	180 °
Beyond LED Technology 153700	Flat	IP65	Green	70.1 mm	12 V	Linear Light Strip	LED Module			7.37 mm						203 mA	19.05 mm
Beyond LED Technology 154305	Flat	IP65	White, Cool, White, Neutral, White, Warm		198.5 VAC	Rectangle	LED Module	110 lm/W							3000K, 4000K, 5000K
