158120-1100

Active

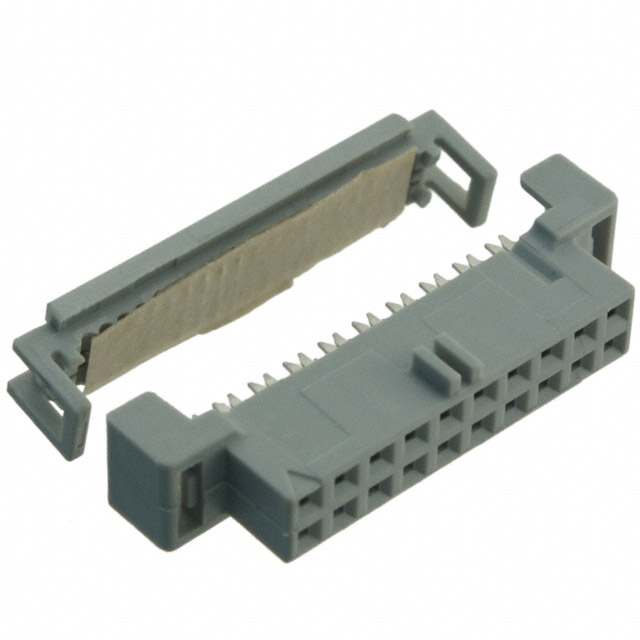

CONN SOCKET 20POS IDC 28AWG GOLD

Search across all available documentation for this part.

Active

CONN SOCKET 20POS IDC 28AWG GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Rectangular Socket Connector IDC Gold 28 AWG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	158120-1100	158120 Series

Cable Termination	IDC	IDC
Color	Gray	Gray
Connector Type	Socket	Socket, Socket to Socket, Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Type	Female Socket	Female Socket
Features	Feed Through	Feed Through
Length	-	76.2 - 152.4 mm
Length	-	3 - 6 "
Length	-	0.5 '
Length	-	0.25 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	20	20
Number of Rows	2	2
Pitch - Cable	-	1 mm
Pitch - Cable	-	0.039 "
Pitch - Connector	-	2 mm
Pitch - Connector	-	0.079 in
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Row Spacing	2 mm	2 mm
Row Spacing	0.079 in	0.079 in
Shielding	-	Unshielded
Wire Gauge	28 AWG	28 AWG
Wire Type	Ribbon Cable	Ribbon Cable

CONN SOCKET 20POS IDC 28AWG GOLD

Part	Wire Gauge	Cable Termination	Connector Type	Features	Wire Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Type	Row Spacing	Row Spacing	Contact Finish	Mounting Type	Number of Positions	Shielding	Pitch - Cable	Pitch - Cable [custom]	Pitch - Connector	Pitch - Connector	Length	Length	Length	Length
3M 158120-1100	28 AWG	IDC	Socket	Feed Through	Ribbon Cable	2	0.079 in	2 mm	0.76 Ám	30 Áin	Gray	Female Socket	2 mm	0.079 in	Gold	Free Hanging (In-Line)	20
3M 158120-1100-3625/20-D-6		IDC	Socket to Socket			2			0.76 Ám	30 Áin					Gold		20	Unshielded	1 mm	0.039 "	2 mm	0.079 in	152.4 mm	6 "	0.5 '
3M 158120-1100-HF625/20-D-3		IDC	Socket to Socket			2			0.76 Ám	30 Áin					Gold		20	Unshielded	1 mm	0.039 "	2 mm	0.079 in	76.2 mm	3 "		0.25 ft
3M 158120-1100-3625/20-S-6		IDC	Socket to Cable			2			0.76 Ám	30 Áin					Gold		20	Unshielded	1 mm	0.039 "	2 mm	0.079 in	152.4 mm	6 "	0.5 '
