Description
General part information

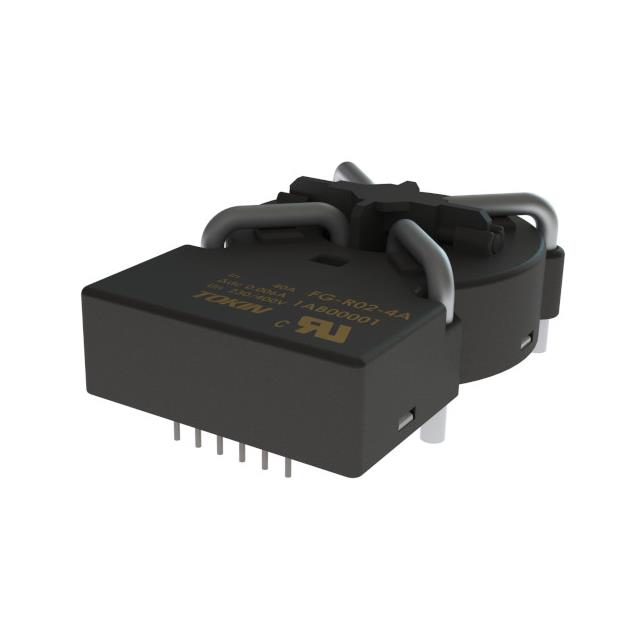

FG-R02-4GA
FG-R02-4GA is a FG-R02 series fluxgate-based residual current sensor. It is a high-sensitivity AC and DC leakage current sensor with individual open drain alarms and an analog output for leakage current indication. In addition, its integrated test coil can be initiated by a test input to perform a functional alarm test. Typical application includes residual current sensor for in cable control and protection devices (IC-CPD) or wallbox.
Technical Specifications
Parameters and characteristics for this part
| Specification | FG-R02-4GA |
|---|---|
| Current - Sensing | 50 mA |
| Current - Supply (Max) | 13 mA |
| For Measuring | AC, DC |
| Maximum Frequency | 55 Hz |
| Minimum Frequency | DC |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 250 ms, 1 s |
| Sensitivity | 40 V/A |
| Sensor Type | Flux Gate, Open Loop |
| Voltage - Supply (Maximum) | 5.25 V |
| Voltage - Supply (Minimum) | 4.75 V |
