0800-3111-185
ActiveAdvanced Photonix

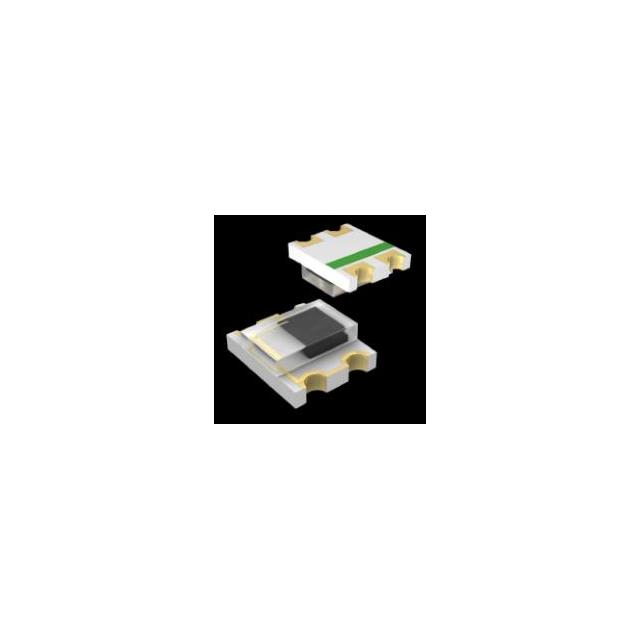

SENSOR PHOTODIODE 1210
0800-3111-185
ActiveAdvanced Photonix
SENSOR PHOTODIODE 1210
Description
General part information
0800-3111-185
Photodiode 130° 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0800-3111-185 |
|---|---|
| Active Area | 0.79 mm² |
| Current - Dark (Typ) | 500 pA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1210 (3225 Metric) |
| Responsivity | 1 A/W, 0.95 A/W |
| Spectral Range (Maximum) | 1700 nm |
| Spectral Range (Minimum) | 900 nm |
| Viewing Angle | 130 ° |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
