EW-05-14-G-D-300

Active

Samtec Inc.

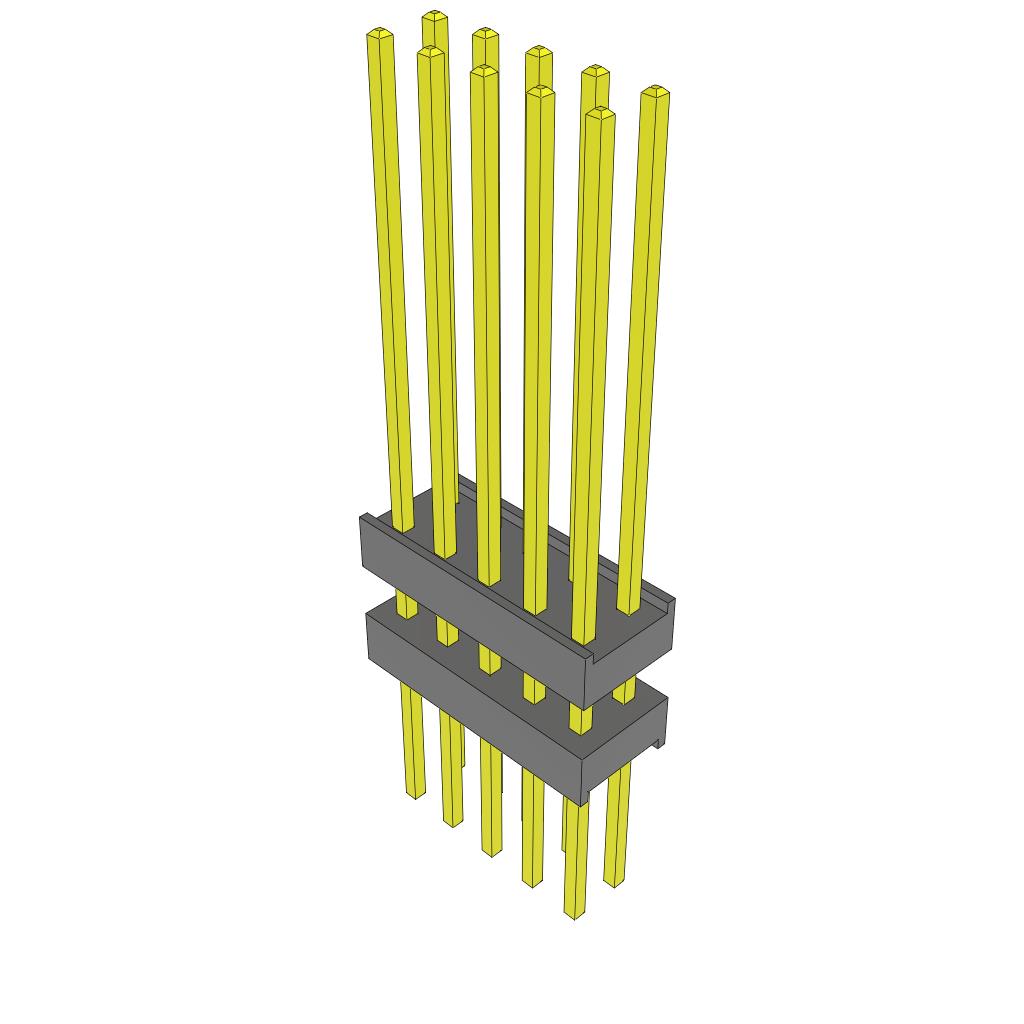

CONN HDR 10POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEW Datasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +1

EW-05-14-G-D-300

Active

Samtec Inc.

CONN HDR 10POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsEW Datasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EW-05-14-G-D-300

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	1.43 in
Length - Overall Pin [x]	36.322 mm
Length - Post (Mating) [x]	20.32 mm
Length - Post (Mating) [x]	0.8 in
Length - Stack Height [x]	0.3 in
Length - Stack Height [x]	7.62 mm
Length - Tail	0.33 in
Length - Tail	8.382 mm
Mounting Type	Through Hole
Number of Positions	10
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

EW-05-14 Series

Part	Mounting Type	Number of Positions	Length - Overall Pin [x]	Length - Overall Pin [x]	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Color	Number of Rows	Length - Tail	Length - Tail	Pitch [x]	Pitch [x]	Contact Finish - Post (Mating)	Row Spacing [x]	Row Spacing	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. EW-05-14-T-D-600	Through Hole	10	1.43 in	36.322 mm	Solder	0.6 in	15.24 mm	Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	12.7 mm	0.5 in
Samtec Inc. EW-05-14-F-D-929	Through Hole	10	1.43 in	36.322 mm	Solder	0.929 in	23.6 mm	Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	4.343 mm	0.171 in	3 Áin	0.076 Ám
Samtec Inc. EW-05-14-L-D-900	Through Hole	10	1.43 in	36.322 mm	Solder	0.9 in	22.86 mm	Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	5.08 mm	0.2 in	10 Áin	0.25 Ám
Samtec Inc. EW-05-14-G-D-300	Through Hole	10	1.43 in	36.322 mm	Solder	0.3 in	7.62 mm	Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	20.32 mm	0.8 in	10 Áin	0.25 Ám
Samtec Inc. EW-05-14-G-D-200	Through Hole	10	1.43 in	36.322 mm	Solder			Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	22.86 mm	0.9 in	10 Áin	0.25 Ám
Samtec Inc. EW-05-14-T-S-860	Through Hole		1.43 in	36.322 mm	Solder	0.86 in	21.844 mm	Black	1	0.33 in	8.382 mm	2.54 mm	0.1 in	Tin			6.096 mm	0.24 in
Samtec Inc. EW-05-14-G-S-875-LL	Through Hole		1.43 in	36.322 mm	Kinked Pin Solder	0.875 in	22.225 mm	Black	1	0.33 in	8.382 mm	2.54 mm	0.1 in	Gold			5.715 mm	0.225 in	10 Áin	0.25 Ám
Samtec Inc. EW-05-14-F-D-1000	Through Hole	10	1.43 in	36.322 mm	Solder	1 in	25.4 mm	Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in	3 Áin	0.076 Ám
Samtec Inc. EW-05-14-L-S-1000	Through Hole		1.43 in	36.322 mm	Solder	1 in	25.4 mm	Black	1	0.33 in	8.382 mm	2.54 mm	0.1 in	Gold			2.54 mm	0.1 in	10 Áin	0.25 Ám
Samtec Inc. EW-05-14-G-D-980	Through Hole	10	1.43 in	36.322 mm	Solder			Black	2	0.33 in	8.382 mm	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	3.048 mm	0.12 in	10 Áin	0.25 Ám	24.892 mm	0.98 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.14
