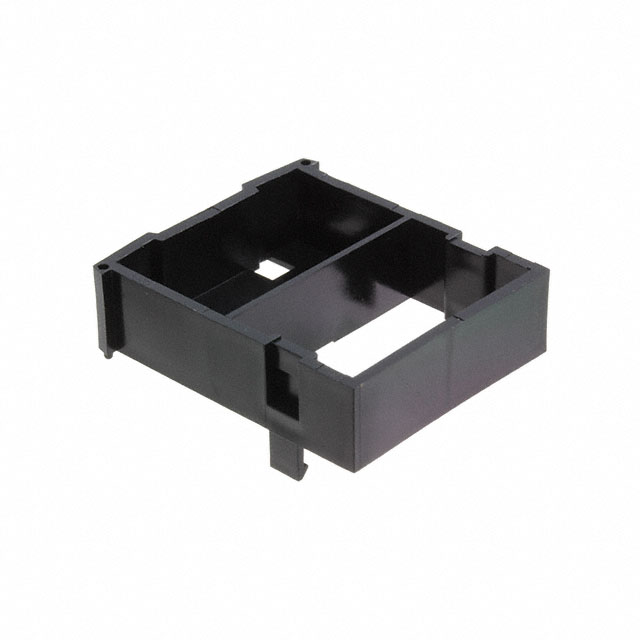

A7P-PU-1
ActiveOmron Electronics Inc-EMC Div
SPACER W/D POINT
Deep-Dive with AI
Search across all available documentation for this part.
A7P-PU-1
ActiveOmron Electronics Inc-EMC Div
SPACER W/D POINT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7P-PU-1 | A7P Series |
|---|---|---|
| Accessory Type | Spacer | Spacer |
| Actuator Type | - | Pushwheel |
| Color | - | Black, Light Gray |
| Contact Rating @ Voltage | - | 0.15 A |
| Contact Rating @ Voltage | - | 0.1 - 50 VDC |
| Depth Behind Flange | - | 43 - 55 mm |
| Display Characters - Height | - | 0.157 - 0.268 in |
| Display Characters - Height | - | 4 - 6.8 mm |
| Electrical Life | - | 50000 - 1000000 Cycles |
| End Caps | - | Sold Separately |
| Features | - | Internal Stoppers, Diode |
| For Use With/Related Products | A7PS Series, A7PH | A7PS Series, A7PH |
| Mounting Type | - | Panel Mount, Snap-In |
| Number of Sections | - | 1 |
| Operating Temperature | - | -10 °C |
| Operating Temperature | - | 65 °C |
| Output Code | - | BCD, SPDT, Decimal, Hexadecimal |
| Read Out | - | 0 |
| Read Out | - | 9 |
| Read Out | - | +/- |
| Read Out | - | F, 9 |
| Read Out | - | 0, A |
| Section Width | - | 0.394 in |
| Section Width | - | 10 mm |
| Termination Style | - | Solder Pad, Card Edge, Card Edge/Solder Pad with Component Mounting |
A7P Series
SWITCH THUMB BCD 0.15A 125V
| Part | Termination Style | Output Code | Color | Number of Sections | Actuator Type | Electrical Life | Depth Behind Flange | Mounting Type | Section Width [x] | Section Width [x] | End Caps | Operating Temperature [Min] | Operating Temperature [Max] | Read Out [Min] | Read Out [Max] | Contact Rating @ Voltage | Display Characters - Height [z] | Display Characters - Height [z] | Features | Contact Rating @ Voltage [x] | Read Out | Accessory Type | For Use With/Related Products | Read Out [Max] | Read Out [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div A7PH-206-1 | Card Edge, Solder Pad | BCD | Black | 1 | Pushwheel | 1000000 Cycles | 43 mm | Panel Mount, Snap-In | 0.394 in | 10 mm | Sold Separately | -10 °C | 65 °C | 0 | 9 | 0.15 A | 0.268 in | 6.8 mm | |||||||
Omron Electronics Inc-EMC Div A7PS-206-S04-1 | Card Edge, Solder Pad | BCD | Black | 1 | Pushwheel | 50000 Cycles | 43 mm | Panel Mount, Snap-In | 0.394 in | 10 mm | Sold Separately | -10 °C | 65 °C | 0 | 9 | 0.268 in | 6.8 mm | Internal Stoppers | 0.1 A, 28 VDC, 50 VAC | ||||||
Omron Electronics Inc-EMC Div A7PH-206-PM-1 | Card Edge, Solder Pad | SPDT | Black | 1 | Pushwheel | 1000000 Cycles | 43 mm | Panel Mount, Snap-In | 0.394 in | 10 mm | Sold Separately | -10 °C | 65 °C | 0.15 A | 0.268 in | 6.8 mm | +/- | ||||||||
Omron Electronics Inc-EMC Div A7PS-203-1 | Card Edge, Solder Pad | Decimal | Black | 1 | Pushwheel | 50000 Cycles | 43 mm | Panel Mount, Snap-In | 0.394 in | 10 mm | Sold Separately | -10 °C | 65 °C | 0 | 9 | 0.268 in | 6.8 mm | 0.1 A, 28 VDC, 50 VAC | |||||||
Omron Electronics Inc-EMC Div A7PS-207-D1 | Card Edge/Solder Pad with Component Mounting | BCD | Black | 1 | Pushwheel | 50000 Cycles | 55 mm | Panel Mount, Snap-In | 0.394 in | 10 mm | Sold Separately | -10 °C | 65 °C | 0 | 9 | 0.268 in | 6.8 mm | Diode | 0.1 A, 28 VDC, 50 VAC | ||||||
Omron Electronics Inc-EMC Div A7PH-203-1 | Card Edge, Solder Pad | Decimal | Black | 1 | Pushwheel | 1000000 Cycles | 43 mm | Panel Mount, Snap-In | 0.394 in | 10 mm | Sold Separately | -10 °C | 65 °C | 0 | 9 | 0.15 A | 0.268 in | 6.8 mm | |||||||
Omron Electronics Inc-EMC Div A7P-PU-1 | Spacer | A7PH, A7PS Series | |||||||||||||||||||||||
Omron Electronics Inc-EMC Div A7PH-254-1 | Card Edge, Solder Pad | Hexadecimal | Black | 1 | Pushwheel | 1000000 Cycles | 43 mm | Panel Mount, Snap-In | 0.394 in | 10 mm | Sold Separately | -10 °C | 65 °C | 0.15 A | 0.157 in | 4 mm | 9, F | 0, A | |||||||
Omron Electronics Inc-EMC Div A7PS-207 | Card Edge/Solder Pad with Component Mounting | BCD | Light Gray | 1 | Pushwheel | 50000 Cycles | 55 mm | Panel Mount, Snap-In | 0.394 in | 10 mm | Sold Separately | -10 °C | 65 °C | 0 | 9 | 0.268 in | 6.8 mm | 0.1 A, 28 VDC, 50 VAC | |||||||
Omron Electronics Inc-EMC Div A7PH-206-PM | Card Edge, Solder Pad | SPDT | Light Gray | 1 | Pushwheel | 1000000 Cycles | 43 mm | Panel Mount, Snap-In | 0.394 in | 10 mm | Sold Separately | -10 °C | 65 °C | 0.15 A | 0.268 in | 6.8 mm | +/- |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.23 | |
| 10 | $ 4.12 | |||
| 25 | $ 4.07 | |||
| 50 | $ 4.01 | |||
| 200 | $ 3.96 | |||
| 400 | $ 3.92 | |||
Description
General part information
A7P Series
Spacer
