SEIFX-8
ActiveCurtis Industries

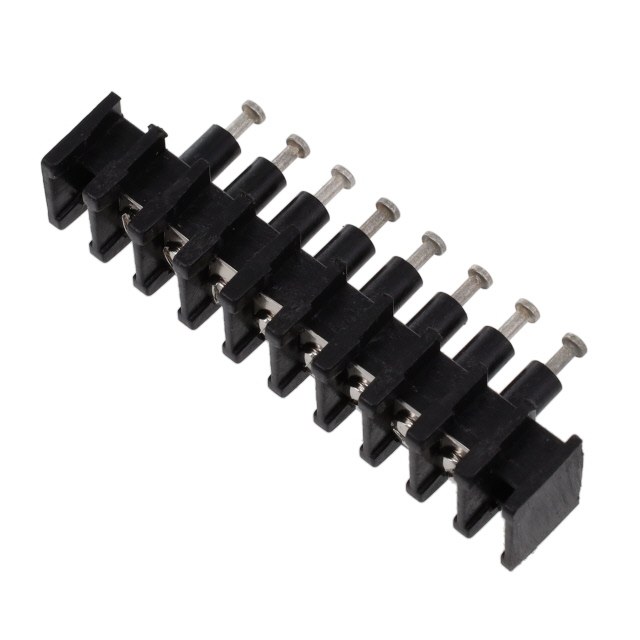

CONN BARRIER STRIP 8CIRC 0.25"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SEIFX-8
ActiveCurtis Industries
CONN BARRIER STRIP 8CIRC 0.25"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SEIFX-8 | SEIFX Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Solder Turret, Insulated | Solder Turret, Insulated |
| Current Rating (Amps) | 5 A | 5 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | - | 3 - 10 |
| Number of Circuits [custom] | 8 | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 8 | 3 - 10 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 0.25 in | 0.25 in |
| Pitch [x] | 6.35 mm | 6.35 mm |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
SEIFX Series
CONN BARRIER STRIP 8CIRC 0.25"
| Part | Bottom Termination | Terminal Screw Material | Terminal Block Type | Barrier Type | Material Flammability Rating | Number of Circuits [custom] | Pitch [x] | Pitch [x] | Top Termination | Mounting Type | Current Rating (Amps) | Number of Wire Entries | Number of Rows | Operating Temperature | Features | Material - Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries SEIFX-8 | Solder Turret, Insulated | Steel | Barrier Block | 2 Wall (Dual) | UL94 V-0 | 8 | 0.25 in | 6.35 mm | Screws | Chassis, Panel | 5 A | 8 | 1 | 110 °C | Flange | Polyphenylene Oxide (PPO) | 22 AWG | 16 AWG | |
Curtis Industries SEIFX-10 | Solder Turret, Insulated | Steel | Barrier Block | 2 Wall (Dual) | UL94 V-0 | 0.25 in | 6.35 mm | Screws | Chassis, Panel | 5 A | 10 | 1 | 110 °C | Flange | Polyphenylene Oxide (PPO) | 22 AWG | 16 AWG | 10 | |
Curtis Industries SEIFX-7 | Solder Turret, Insulated | Steel | Barrier Block | 2 Wall (Dual) | UL94 V-0 | 0.25 in | 6.35 mm | Screws | Chassis, Panel | 5 A | 7 | 1 | 110 °C | Flange | Polyphenylene Oxide (PPO) | 22 AWG | 16 AWG | 7 | |
Curtis Industries SEIFX-3 | Solder Turret, Insulated | Steel | Barrier Block | 2 Wall (Dual) | UL94 V-0 | 0.25 in | 6.35 mm | Screws | Chassis, Panel | 5 A | 3 | 1 | 110 °C | Flange | Polyphenylene Oxide (PPO) | 22 AWG | 16 AWG | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SEIFX Series
8 Circuit 0.250" (6.35mm) Barrier Block Connector Screws
