M39006/33-0040
ActiveKYOCERA AVX
M-LEVEL 560UF 60V
M39006/33-0040
ActiveKYOCERA AVX
M-LEVEL 560UF 60V
Description
General part information
M39006/33-0040

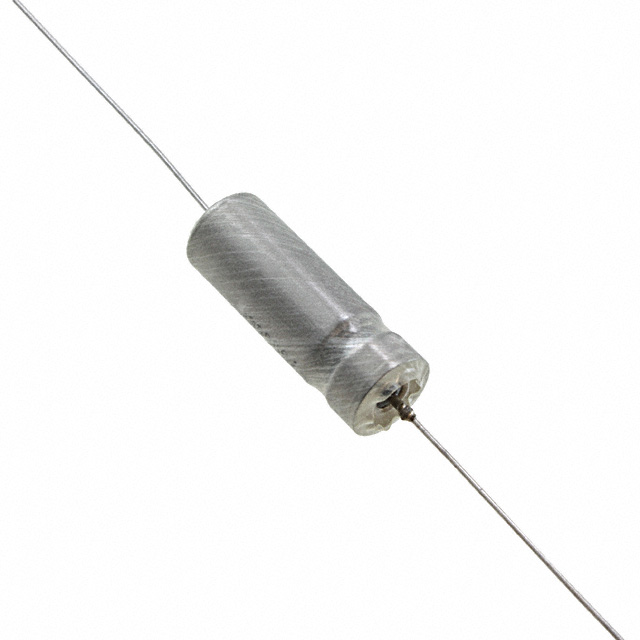

560 µF Hermetically Sealed Tantalum Capacitors 60 V Axial 800mOhm @ 120Hz
Technical Specifications
Parameters and characteristics for this part
| Specification | M39006/33-0040 |
|---|---|
| Capacitance | 560 µF |
| ESR (Equivalent Series Resistance) | 800 mOhm |
| Features | Wet Tantalum |
| Grade | Military |
| Manufacturer Size Code | E |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Qualification | 33, MIL-PRF-39006 |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.062 in |
| Tolerance | 10 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 60 VDC |
