1345SQ-2(100)

Active

3M (TC)

RF EMI SHLDING SHEET 2"X2" 100PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1345SQ-2(100)

Active

3M (TC)

RF EMI SHLDING SHEET 2"X2" 100PK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 101.98

Description

General part information

1345 Series

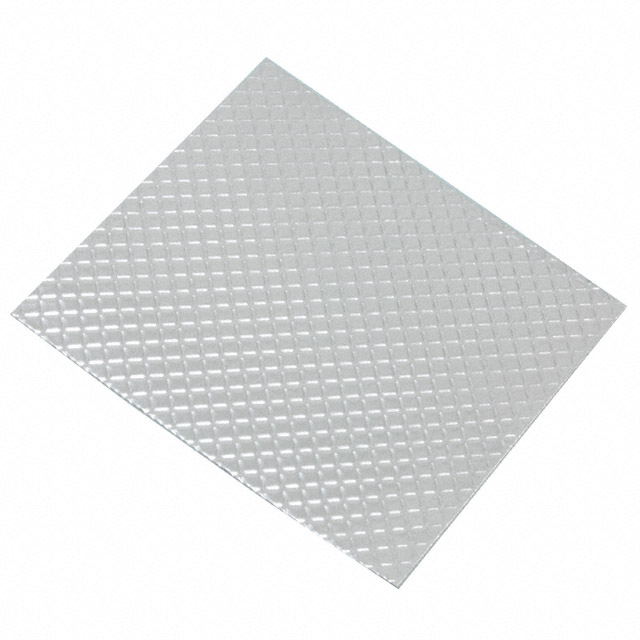

RF EMI Shielding Sheet 1345 Embossed Tin-Plated Copper Foil Conductive, Single Sided 2.000" (50.80mm) X 2.000" (50.80mm) X 0.004" (0.09mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1345SQ-2(100)	1345 Series

Adhesive	Conductive, Single Sided	Conductive, Single Sided
Length	50.8 mm	12.7 - 50.8 mm
Length	2 in	0.5 - 2 "
Material	Embossed Tin-Plated Copper Foil	Embossed Tin-Plated Copper Foil
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shape	Square	Square, Rectangular, Circular
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Thickness - Overall	0.09 mm	0.09 mm
Thickness - Overall	0.004 in	0.004 in
Thickness - Overall	-	0.004 "
Thickness - Overall	-	0.1 mm
Type	Shielding Sheet	Shielding Sheet
Width	-	25.4 - 38.1 mm
Width	-	0.75 in
Width	-	19.05 mm
Width [x]	2 in	1 - 2 in
Width [x]	50.8 mm	50.8 mm

1345 Series

RF SHLDING SHEET 1.5"X1.5" 100PK

Part	Length	Length	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Width [x]	Width	Material	Adhesive	Shelf Life	Thickness - Overall	Thickness - Overall	Shelf Life Start	Shape	Operating Temperature [Min]	Operating Temperature [Max]	Type	Width [y]	Width [y]	Thickness - Overall [custom]	Thickness - Overall [custom]	Width [x]
3M (TC) 3M 1345 1.5"SQ-100	1.5 "	38.1 mm	27 °C, 80 °F	10 °C	1.5 in	38.1 mm	Embossed Tin-Plated Copper Foil	Conductive, Single Sided	60 Months	0.09 mm	0.004 in	Date of Manufacture	Square	-40 °C	130 °C	Shielding Sheet
3M (TC) 3M 1345 1" X 2"-100	2 in	50.8 mm	27 °C, 80 °F	10 °C	1 in	25.4 mm	Embossed Tin-Plated Copper Foil	Conductive, Single Sided	60 Months	0.09 mm	0.004 in	Date of Manufacture	Rectangular	-40 °C	130 °C	Shielding Sheet
3M (TC) 3M 1345 3/4" X 2"-100	2 in	50.8 mm	27 °C, 80 °F	10 °C			Embossed Tin-Plated Copper Foil	Conductive, Single Sided	60 Months	0.09 mm	0.004 in	Date of Manufacture	Rectangular	-40 °C	130 °C	Shielding Sheet	0.75 in	19.05 mm
3M (TC) 1345CIR-0.5(250)			27 °C, 80 °F	10 °C			Embossed Tin-Plated Copper Foil	Conductive, Single Sided	60 Months	0.09 mm	0.004 in	Date of Manufacture	Circular	-40 °C	130 °C	Shielding Sheet
3M (TC) 1345CIR-1(250)			27 °C, 80 °F	10 °C	1 in	25.4 mm	Embossed Tin-Plated Copper Foil	Conductive, Single Sided	60 Months	0.09 mm	0.004 in	Date of Manufacture	Circular	-40 °C	130 °C	Shielding Sheet
3M (TC) 1345SQ-0.5(250)	0.5 in	12.7 mm	27 °C, 80 °F	10 °C			Embossed Tin-Plated Copper Foil	Conductive, Single Sided	60 Months			Date of Manufacture	Square	-40 °C	130 °C	Shielding Sheet			0.004 "	0.1 mm
3M (TC) 3M 1345 0.75"SQ-250	0.75 in	19.05 mm	27 °C, 80 °F	10 °C			Embossed Tin-Plated Copper Foil	Conductive, Single Sided	60 Months	0.09 mm	0.004 in	Date of Manufacture	Square	-40 °C	130 °C	Shielding Sheet	0.75 in	19.05 mm
3M (TC) 1345CIR-0.75(250)			27 °C, 80 °F	10 °C			Embossed Tin-Plated Copper Foil	Conductive, Single Sided	60 Months	0.09 mm	0.004 in	Date of Manufacture	Circular	-40 °C	130 °C	Shielding Sheet	0.75 in	19.05 mm
3M (TC) 3M 1345 CIRCLE-1.5"-100			27 °C, 80 °F	10 °C	1.5 in	38.1 mm	Embossed Tin-Plated Copper Foil	Conductive, Single Sided	60 Months	0.09 mm	0.004 in	Date of Manufacture	Circular	-40 °C	130 °C	Shielding Sheet
3M (TC) 3M 1345 CIRCLE-2"-100			27 °C, 80 °F	10 °C	2 in		Embossed Tin-Plated Copper Foil	Conductive, Single Sided	60 Months	0.09 mm	0.004 in	Date of Manufacture	Circular	-40 °C	130 °C	Shielding Sheet					50.8 mm
