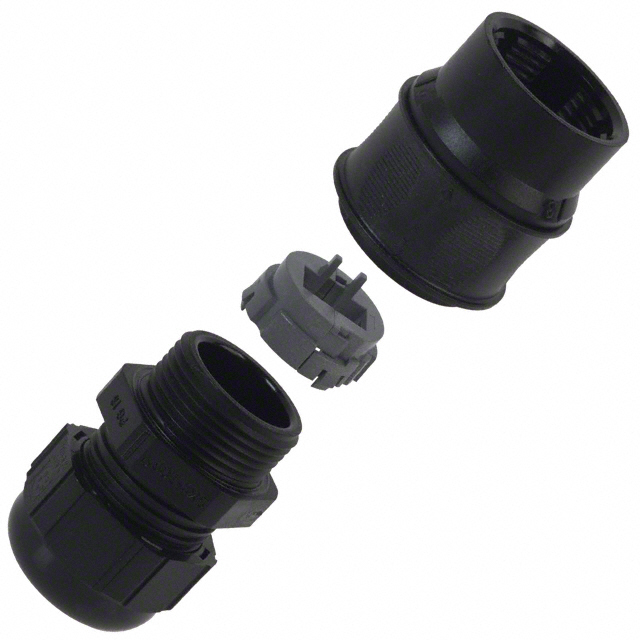

Specification	RJF5446

Connector Type	Housing for Prewired RJ45 Cordset
Fastening Type	Push-Pull
Features	Toolless, Vibration Resistant, Shock Resistant
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Note	Plug Not Provided
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shielding	Unshielded

RJF54 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Convert From (Adapter End)	Convert To (Adapter End)	Shielding	Mounting Type	Ingress Protection IP Rating	Ingress Protection Description	Type	Shell Material, Finish	Ratings	Features	Cable Type	Length	Connector Type	Style	Number of Positions	Number of Contacts	Color	Number of Rows	Number of Ports	Tab Direction	Orientation	LED Color	Termination
McGill Microwave Systems RJF544621	-40 °C	85 °C	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Shielded	Panel Mount Square Flange	IP68	Dust Tight Waterproof	Coupler	Plastic	Cat6
McGill Microwave Systems RJF5442M1	-40 °C	85 °C	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Unshielded	Panel Mount Square Flange	IP67	Dust Tight Waterproof	Coupler	Metallized Plastic	Cat5e	Push Pull Coupling
McGill Microwave Systems RJF5442205100BTX					Shielded	Flange Panel Mount						Circular Push Pull Coupling	Round Cable	1.64 ft	Ethernet Jack to Plug RJ45	Cat5e Industrial Environments - IP67	8	8	Gray
McGill Microwave Systems RJF54462S1	-40 °C	85 °C	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Shielded	Panel Mount Square Flange	IP68	Dust Tight Waterproof	Coupler	Plastic	Cat6
McGill Microwave Systems RJF54421RA	-40 °C	85 °C	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Shielded	Panel Mount Right Angle Square Flange			Coupler		Cat5e	Circular Bayonet Coupling
McGill Microwave Systems RJF54462M1	-40 °C	85 °C	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Shielded	Panel Mount Square Flange	IP68	Dust Tight Waterproof	Coupler	Metallized Nickel Plated Plastic	Cat6
McGill Microwave Systems RJF5442203100BTX					Shielded	Flange Panel Mount						Circular Push Pull Coupling	Round Cable	0.98 ft	Ethernet Jack to Plug RJ45	Cat5e Industrial Environments - IP67	8	8	Gray
McGill Microwave Systems RJF54462SM1	-40 °C	85 °C	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Shielded	Panel Mount Square Flange	IP68	Dust Tight Waterproof	Coupler	Metallized Nickel Plated Plastic	Cat6
McGill Microwave Systems RJF54421	-40 °C	85 °C	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Unshielded	Panel Mount Square Flange	IP67	Dust Tight Waterproof	Coupler	Plastic	Cat5e	Push Pull Coupling
McGill Microwave Systems RJF5442M200	-40 °C	85 °C			Unshielded	Panel Mount Square Flange	IP67	Dust Tight Waterproof			Cat5e	Push Pull Coupling			Ethernet Jack RJ45		8	8		1	1	User Selectable	Straight	Does Not Contain LED	PC Board Solder
