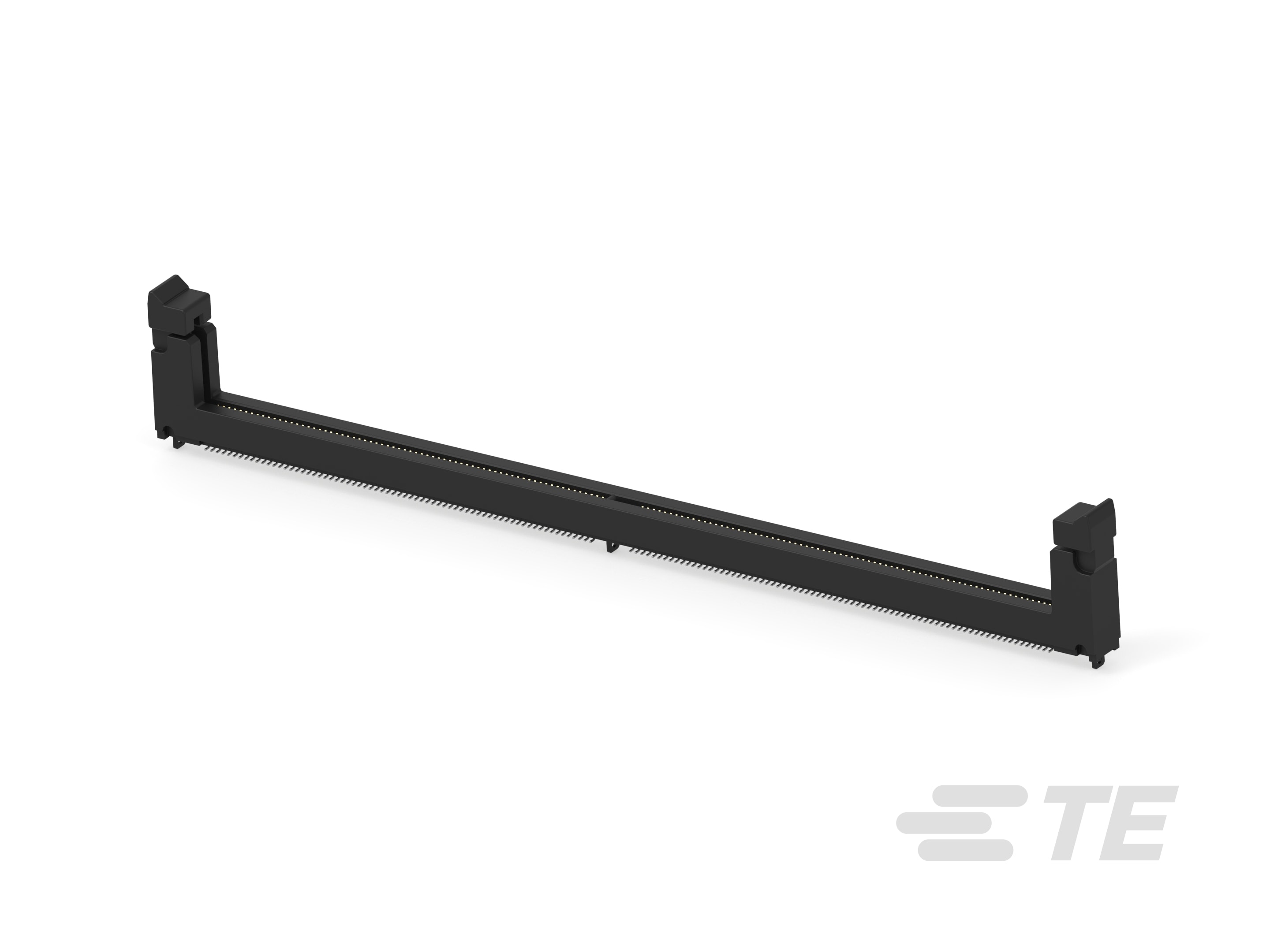

DDR5 DIMM BLACK HSG AND BLACK LATCH-1-2355626-1

1-2355626-1

NRND
TE Connectivity AMP Connectors

MEMORY CARD CONNECTOR, DDR5 DIMM, DIRECT INSERT - LATCHED, 288 CONTACTS, COPPER ALLOY

Find alt
DDR5 DIMM BLACK HSG AND BLACK LATCH-1-2355626-1

1-2355626-1

NRND
TE Connectivity AMP Connectors

MEMORY CARD CONNECTOR, DDR5 DIMM, DIRECT INSERT - LATCHED, 288 CONTACTS, COPPER ALLOY

Find alt

Description

General part information

1-2355626-1

Double Data Rate (DDR) 5, Board-to-Component, 288 Position, Surface Mount, Vertical Module Orientation, DDR5 DIMM, DIMM Sockets

Technical Specifications

Parameters and characteristics for this part

Specification1-2355626-1
Card Thickness0.05 in
ColorBlack
Connector StyleDIMM
Contact FinishGold
Contact Finish Thickness30 µin
FeaturesBoard Lock, Latches
Memory TypeDDR5 SDRAM
Mounting FeatureTop, Normal, Standard
Mounting TypeSurface Mount
Number of Positions288

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
