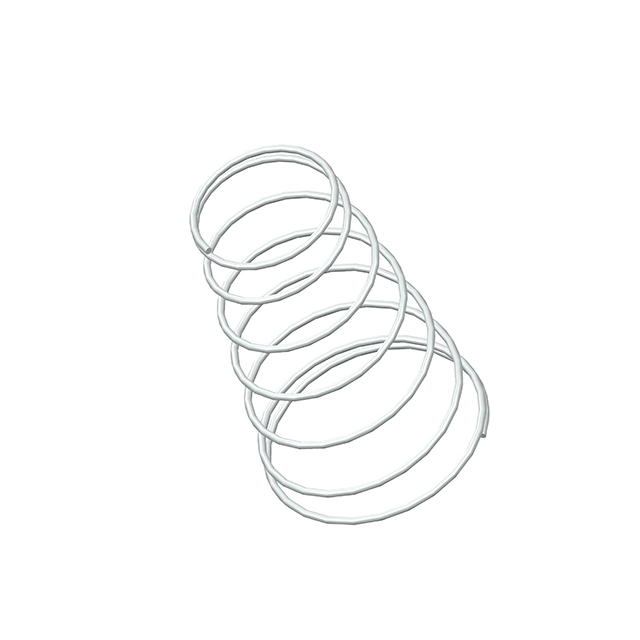

TA-2387CS
ActiveCentury Spring Corp
TAPERED STAINLESS STEEL 0.750"
TA-2387CS
ActiveCentury Spring Corp
TAPERED STAINLESS STEEL 0.750"
Description
General part information
TA-2387CS
TAPERED STAINLESS STEEL 0.750"
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2387CS |
|---|---|
| Diameter - Inside | 0.28 in |
| Diameter - Large Outside | 0.468 in |
| Diameter - Small Outside | 0.306 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.75 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 0.2 lbs/in |
| Type | Tapered |
| Wire Diameter | 0.015 in |
