Description
General part information
9-2390874-4

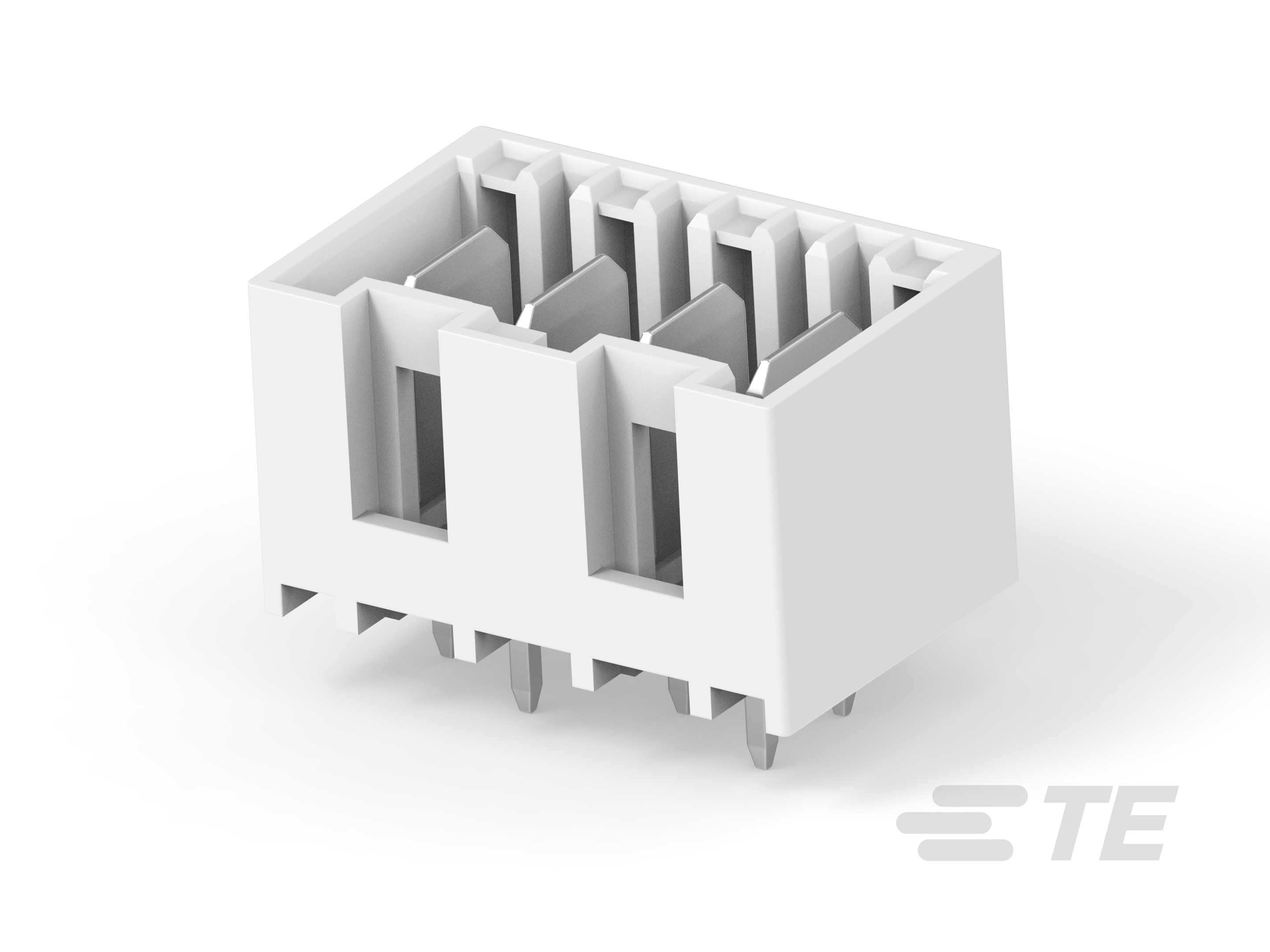

PCB Mount Header, Vertical, Wire-to-Board, 4 Position, 5 mm [.197 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, Power, Natural, Bag
Technical Specifications
Parameters and characteristics for this part
| Specification | 9-2390874-4 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 78.7 Ąin |
| Contact Length - Post | 0.138 in |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Current Rating | 20 A |
| Fastening Type | Detent Lock |
| Features | Board Guide, Glow Wire Compliant |
| Insulation Color | Natural |
| Insulation Height | 0.504 in |
| Insulation Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.197 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 250 V |
