K30B001UP
ActiveSCHNEIDER ELECTRIC
SWITCH SELECTOR 2POS SPST
K30B001UP
ActiveSCHNEIDER ELECTRIC
SWITCH SELECTOR 2POS SPST
Description
General part information
K30B001UP

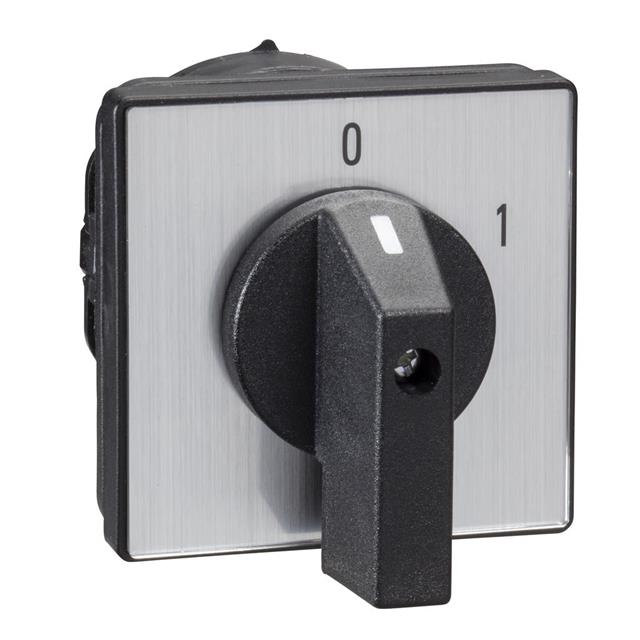

Selector Switch 2 Position SPST Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | K30B001UP |
|---|---|
| Approval Agency | cULus |
| Circuit | SPST |
| Illumination | Non-Illuminated |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 300000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off |
| Termination Style | Screw Terminal |
| Type | Standard |
