MSR3-0R03J1
ActiveBourns Inc.
RES 0.03 OHM 5% 3W RADIAL
MSR3-0R03J1
ActiveBourns Inc.
RES 0.03 OHM 5% 3W RADIAL
Description
General part information

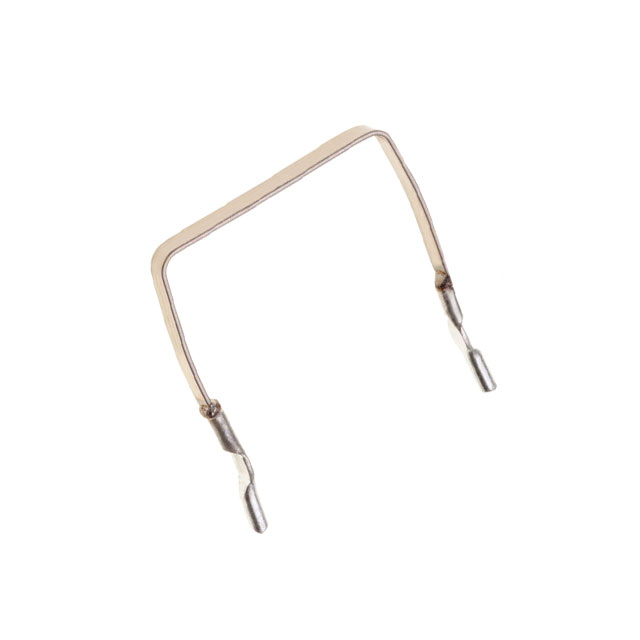

MSR3-0R03J1
30 mOhms ±5% 3W Through Hole Resistor Radial Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | MSR3-0R03J1 |
|---|---|
| Composition | Metal Element |
| Features | Safety, Pulse Withstanding, Current Sense, Non-Inductive, Flame Proof |
| Height - Seated (Max) | 25.4 mm |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Radial |
| Power (Watts) | 3 W |
| Resistance | 0.03 Ohms |
| Size / Dimension Length | 0.598 in |
| Size / Dimension Width | 0.067 in |
| Temperature Coefficient | 20 ppm/¯C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
