P006-006-HG10
ActiveMAINS POWER CORD, NEMA 5-15P TO IEC 60320 C13, 1.8 M, 10 A, 125 VAC, BLACK
P006-006-HG10
ActiveMAINS POWER CORD, NEMA 5-15P TO IEC 60320 C13, 1.8 M, 10 A, 125 VAC, BLACK
Description
General part information
P006-006-HG10

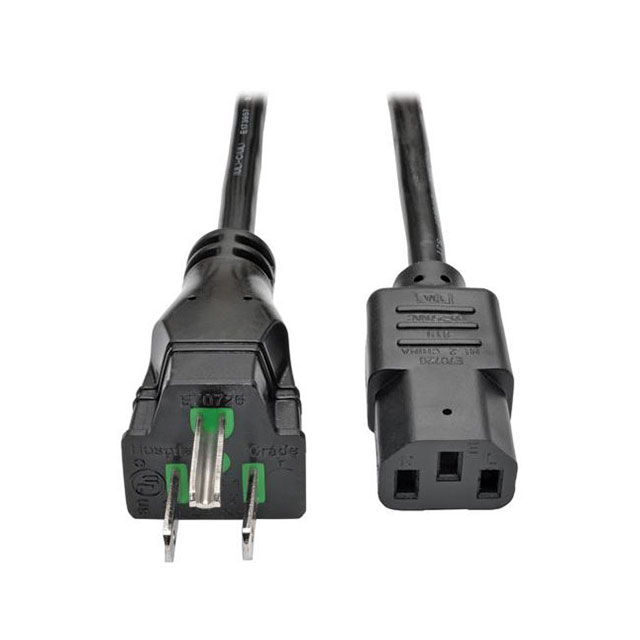

Hospital-grade IEC power cord is designed for computers, mobile carts, printers, scanners, monitors and other compatible hospital equipment with a three-pin C14 inlet. It features a C13 end for connecting to a device and a NEMA 5-15PHG plug for connecting to a hospital-grade AC power source located outside patient-care vicinities. The six-foot length black cable allows you flexibility in placing equipment with respect to the power outlet.
Technical Specifications
Parameters and characteristics for this part
| Specification | P006-006-HG10 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | IEC 320-C13 |
| Approval Agency Marking | cUL, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 10 A |
| Features | Hospital Grade |
| Length | 6 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 18 AWG |
