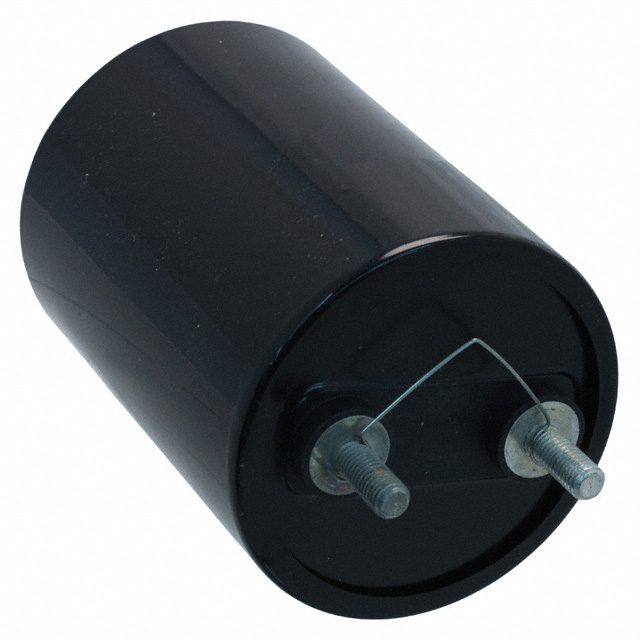

947C361K801CAI
ActiveCornell Dubilier Knowles
CAP FILM 360UF 10% 800VDC RADIAL
947C361K801CAI
ActiveCornell Dubilier Knowles
CAP FILM 360UF 10% 800VDC RADIAL
Description
General part information
947C361K801CAI
360 µF Film Capacitor 230V 800V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | 947C361K801CAI |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 360 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 1.9 mOhm |
| Features | Low ESR, Long Life |
| Height - Seated (Max) | 3.898 in |
| Lead Spacing | 1.772 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 3.543 in |
| Termination | Threaded, Female |
| Tolerance | 10 % |
| Voltage Rating - AC | 230 V |
| Voltage Rating - DC | 800 V |
