VDRS07H275TSE
ActiveVishay Dale

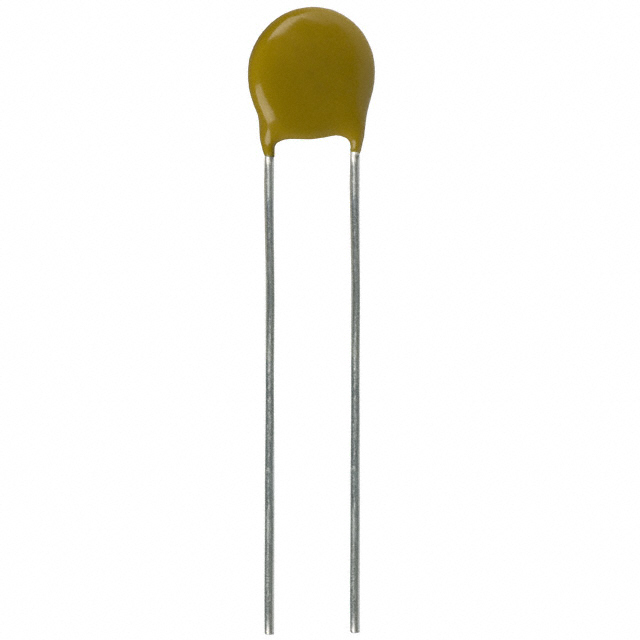

VARISTOR 430V 1.2KA DISC 9MM
VDRS07H275TSE
ActiveVishay Dale
VARISTOR 430V 1.2KA DISC 9MM
Description
General part information
VDRS07H275TSE
430 V 1.2 kA Varistor 1 Circuit Through Hole Disc 9mm
Technical Specifications
Parameters and characteristics for this part
| Specification | VDRS07H275TSE |
|---|---|
| Capacitance | 140 pF |
| Current - Surge | 1200 A |
| Energy | 36 J |
| Maximum AC Volts | 275 V |
| Maximum DC Voltage | 350 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Diameter | 9 mm |
| Package Name | Disc |
| Varistor Voltage (Max) | 473 V |
| Varistor Voltage (Min) | 387 V |
| Varistor Voltage (Typ) | 430 V |
