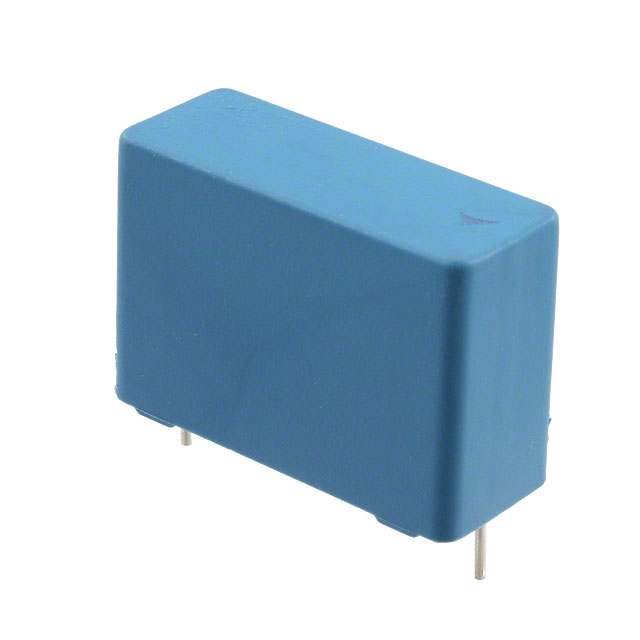

Specification	B32524R0336K000

Applications	EMI, Automotive, RFI Suppression
Capacitance	33 µF
Dielectric Material	Metallized, Polyester, Polyethylene Terephthalate (PET)
Height - Seated (Max)	0.846 in
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension Length	1.24 in
Size / Dimension Width	0.492 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	40 V
Voltage Rating - DC	63 V
