XB4BL73415
ActiveINDUSTRIAL PUSHBUTTON SWITCH, HARMONY XB4 SERIES, 22.5 MM, SPST-NO, SPST-NC, MOMENTARY
XB4BL73415
ActiveINDUSTRIAL PUSHBUTTON SWITCH, HARMONY XB4 SERIES, 22.5 MM, SPST-NO, SPST-NC, MOMENTARY
Description
General part information
XB4BL73415

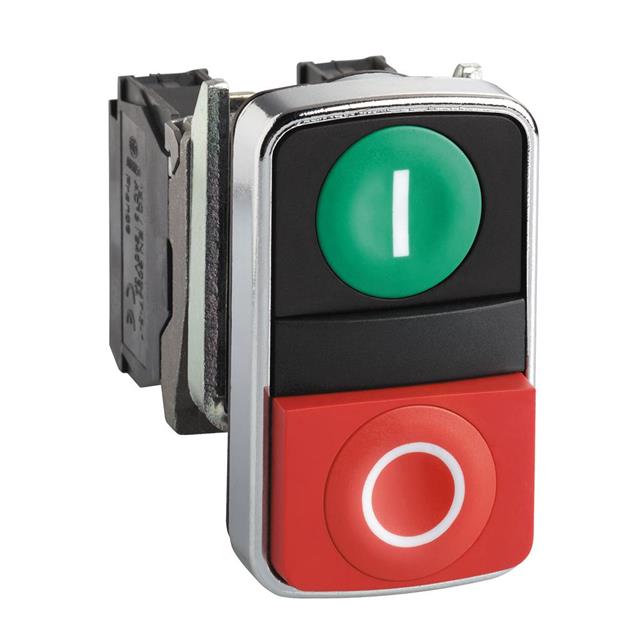

The XB4BL73415 is a single-pole single-throw (SPST) 1 NO + 1 NC Pushbutton Operator with chromium-plated metal bezel and slow-break standard silver alloy (Ag/Ni) contacts. This XB4 series commercialized rectangular head pushbutton features spring return green I - red O 1-flush - 1-projecting operator, screw clamp connection terminals and Zamak fixing collar.
Technical Specifications
Parameters and characteristics for this part
| Specification | XB4BL73415 |
|---|---|
| Actuator Type | Button, Flush, Rectangular |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Red, Green |
| Current Rating | 550 mA, 6 A |
| Electrical Life (Cycles) | 1000000 Cycles |
| Ingress Protection Description | High Temp Water Jets, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 22 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
