1-1776313-2
ActiveTE Connectivity AMP Connectors
TSB200012DS=EUROPA T-BL,14.5MM
1-1776313-2
ActiveTE Connectivity AMP Connectors
TSB200012DS=EUROPA T-BL,14.5MM
Description
General part information
1-1776313-2

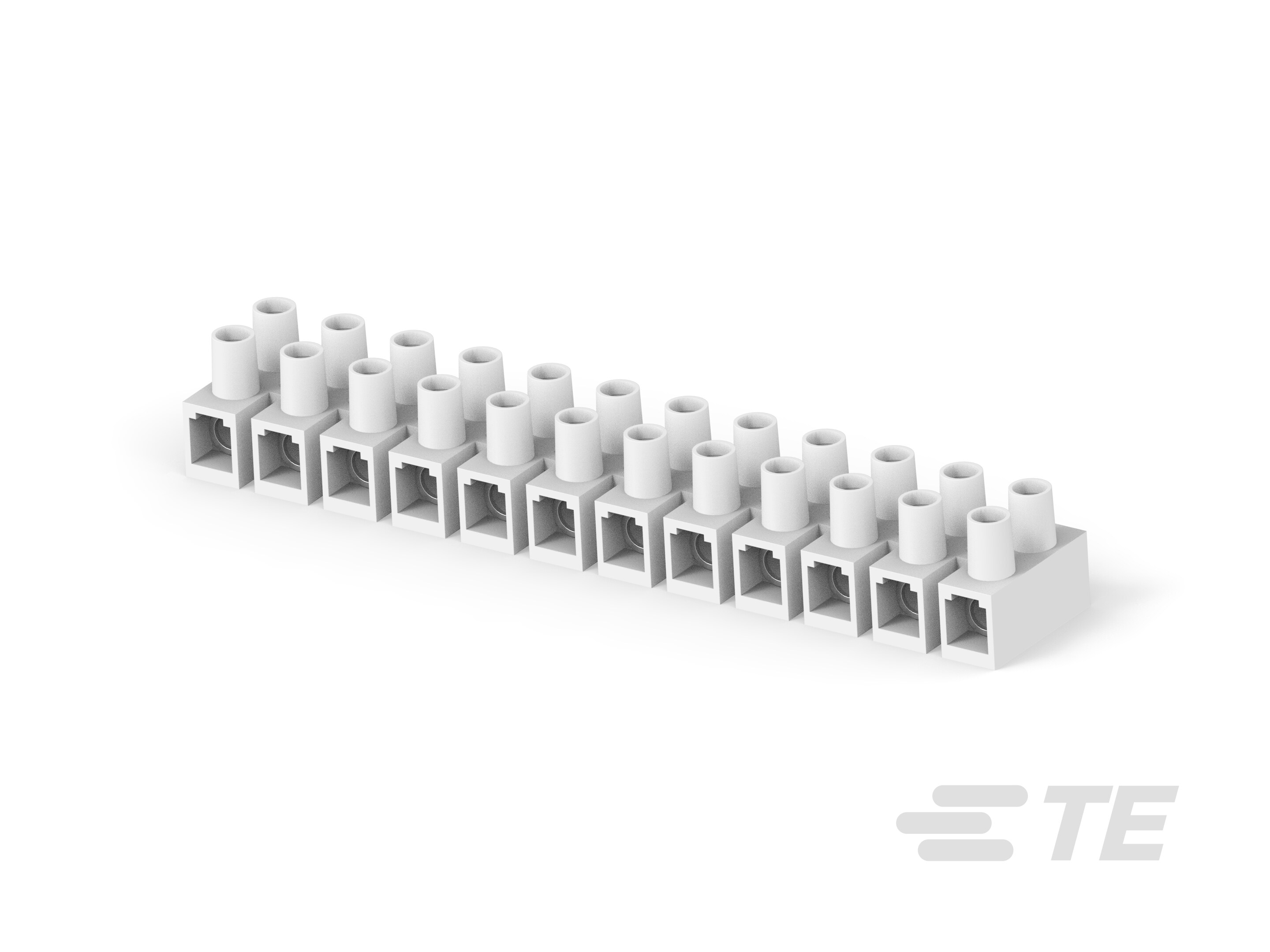

12 Position Barrier Strip, Wire-to-Wire, 14.5 mm [.571 in] Centerline, 1 Row, 600 V, 14 – 6 AWG, 2 – 14 mm² Wire, Wire & Cable, Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1776313-2 |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Color | Natural |
| Current Rating | 65 A |
| Number of Circuits | 12 |
| Number of Rows | 2 |
| Number of Wire Entries | 24 |
| Pitch | 0.571 in |
| Terminal Block Type | Eurostyle Terminal Strip |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge (AWG) (Max) | 14 AWG |
| Wire Gauge (AWG) (Min) | 6 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
