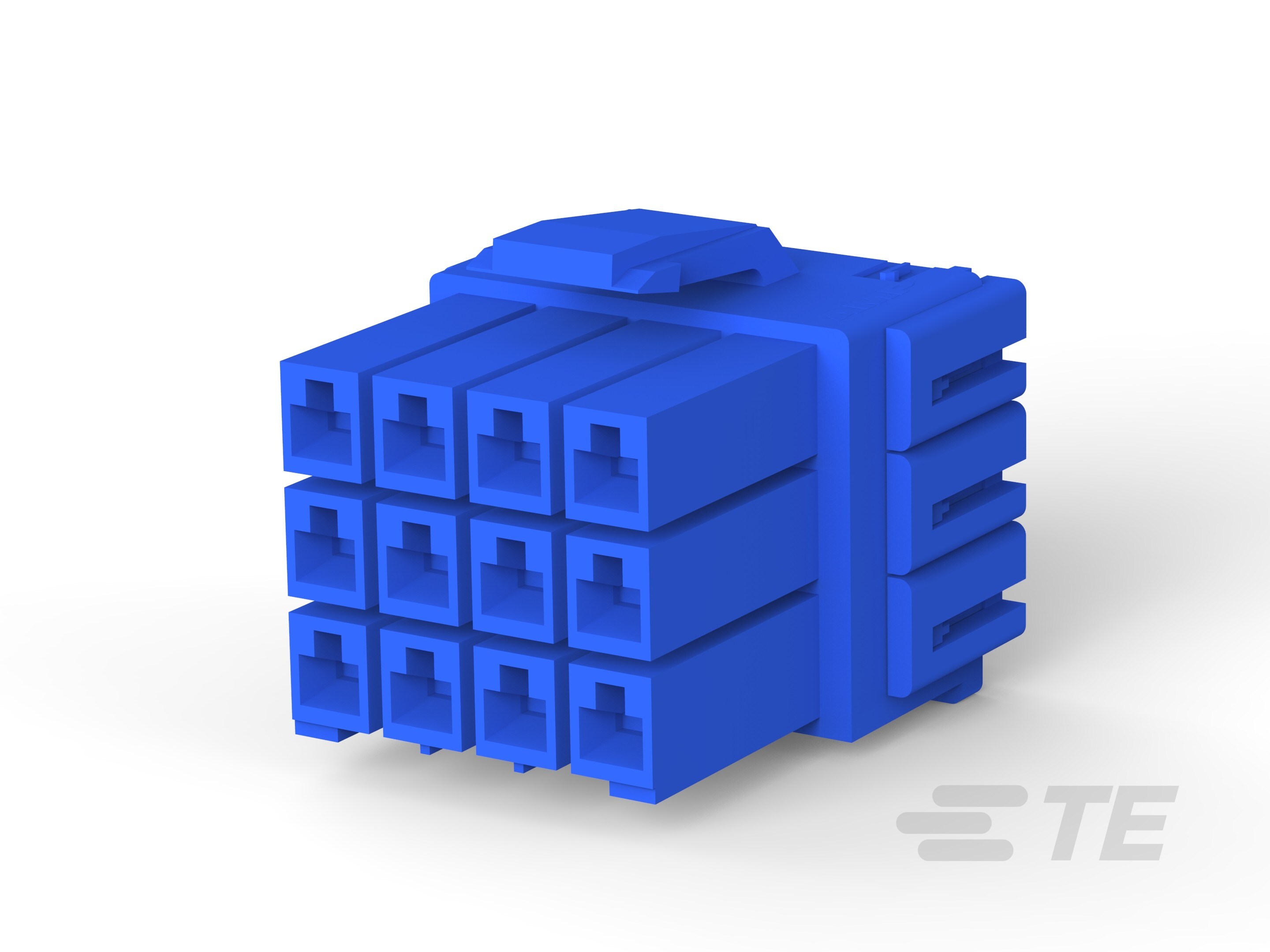

POWER DBL LOCK PLUG HSG 12P-177905-6

177905-6

Active
TE Connectivity AMP Connectors

POWER DBL LOCK PLUG HSG 12P ROHS COMPLIANT: YES

Find alt
POWER DBL LOCK PLUG HSG 12P-177905-6

177905-6

Active
TE Connectivity AMP Connectors

POWER DBL LOCK PLUG HSG 12P ROHS COMPLIANT: YES

Find alt

Description

General part information

177905-6

12 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-0, 3.96 mm [.156 in] Centerline, 3 Row, 300 VAC, Wire & Cable, Power, Power Double Lock

Technical Specifications

Parameters and characteristics for this part

Specification177905-6
ColorBlue
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Lock
Insulation MaterialPolyamide (PA66), Nylon 6/6
Mounting TypeFree Hanging (In-Line)
Number of Positions12
Number of Rows3
Operating Temperature (Max)105 °C
Operating Temperature (Min)-30 °C
Pitch0.156 in
Row Spacing0.181 in
