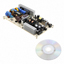

EVL185W-LEDTV
ObsoleteSTMicroelectronics
EVAL BOARD L6564 L6599A VIPER27
EVL185W-LEDTV
ObsoleteSTMicroelectronics
EVAL BOARD L6564 L6599A VIPER27
Description
General part information
EVL185W-LEDTV
EVAL BOARD L6564 L6599A VIPER27
Technical Specifications
Parameters and characteristics for this part
| Specification | EVL185W-LEDTV |
|---|---|
| Contents | Board |
| Current - Output (Value 1) | 4 A |
| Current - Output (Value 2) | 2 A |
| Current - Output (Value 3) | 2 A |
| Current - Output (Value 4) | 620 mA |
| Isolated Output Count | 4 count |
| Main Purpose | Power Supply with PFC |
| Output Type | Isolated |
| Power - Output | 185 W |
| Total Output Count | 4 count |
| Utilized IC / Part | VIPer27, L6599A, L6564 |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 130V, 5V, 24V, 12V |
| Voltage - Output (1) | 5 V |
| Voltage - Output (2) | 12 V |
| Voltage - Output (3) | 24 V |
| Voltage - Output (4) | 130 V |
